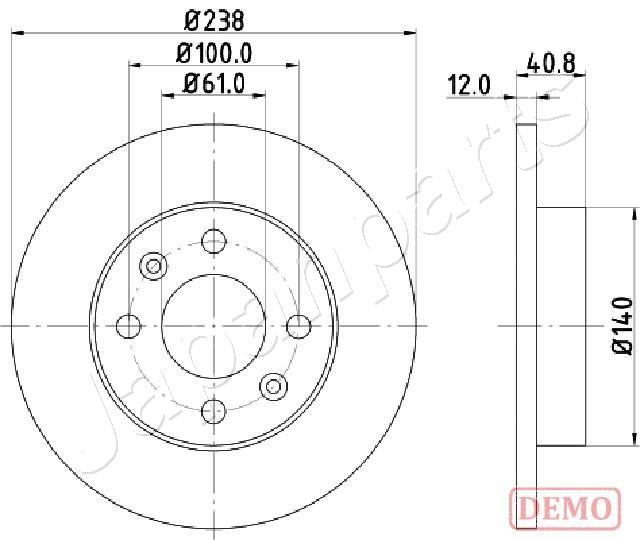

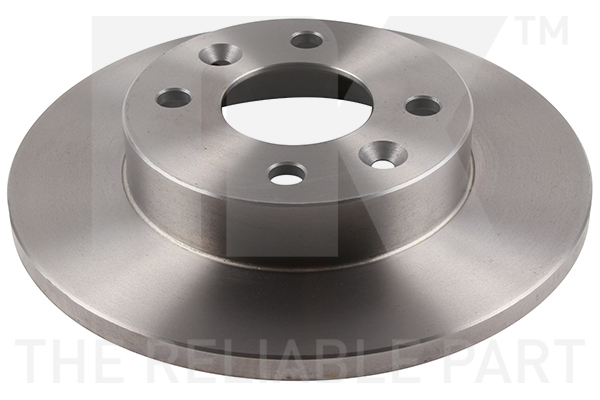

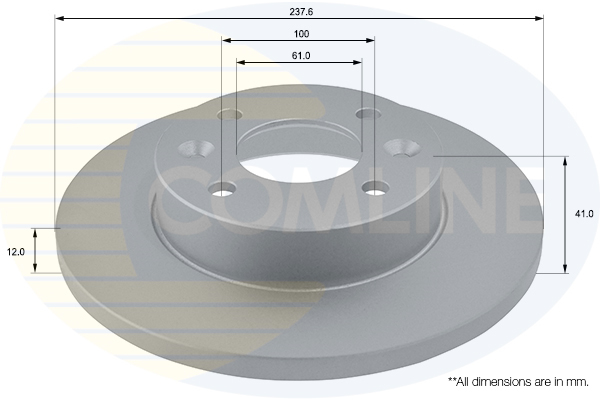

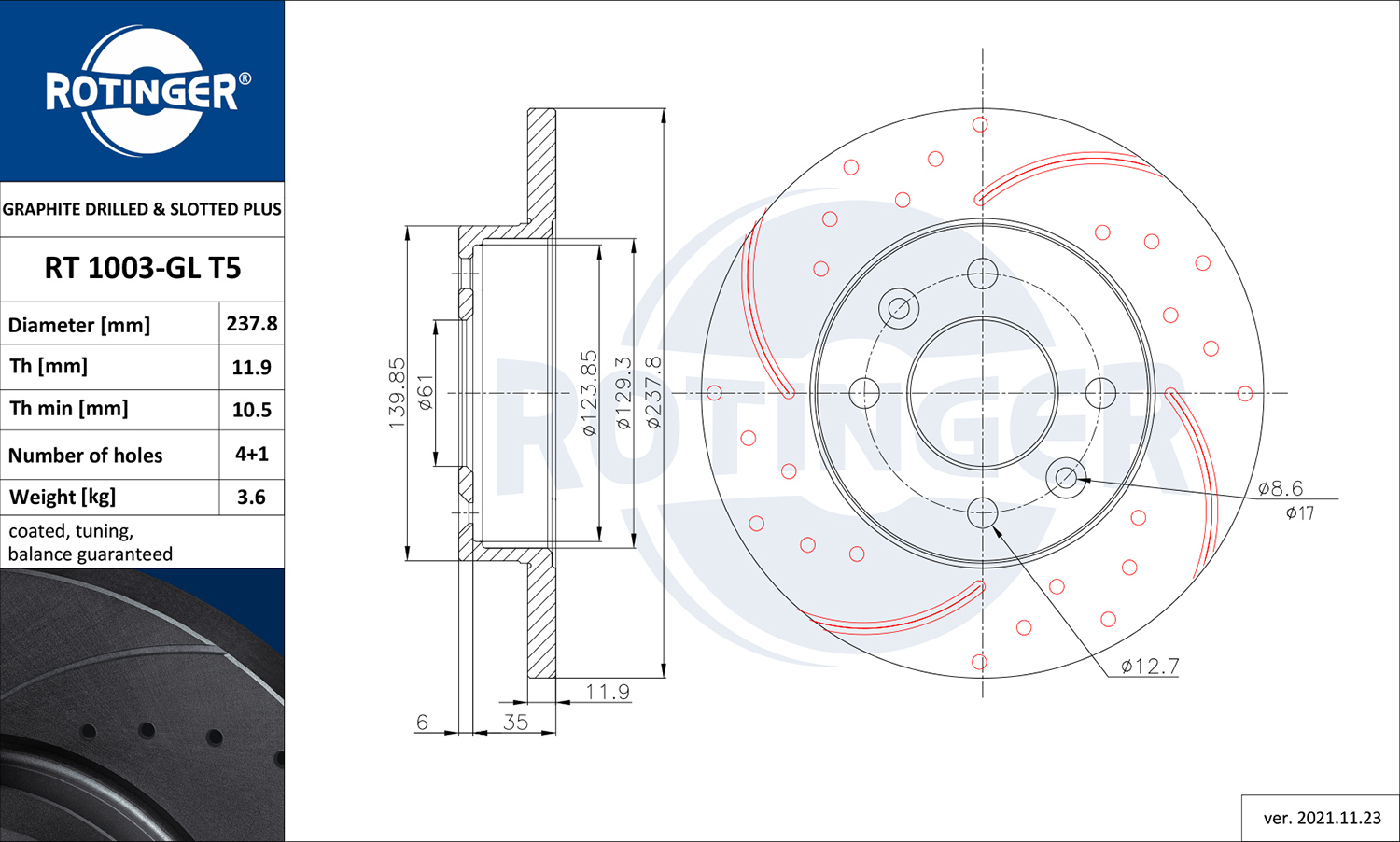

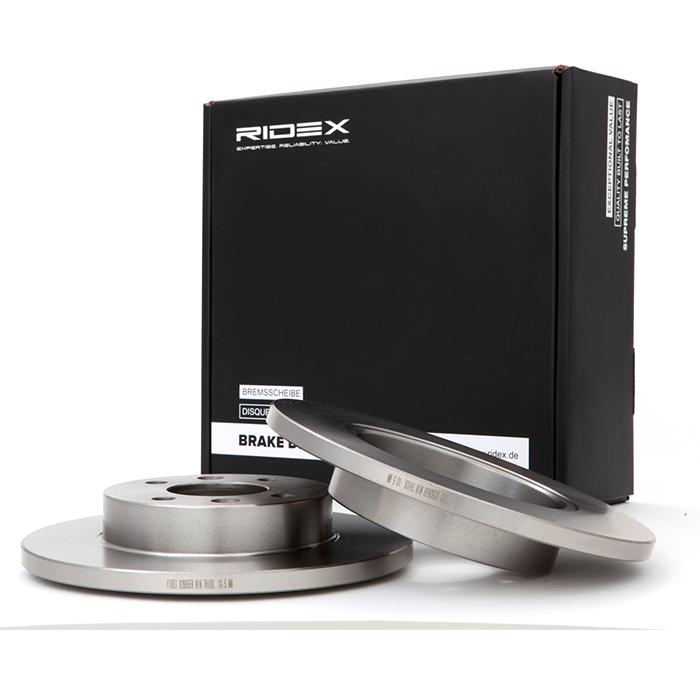

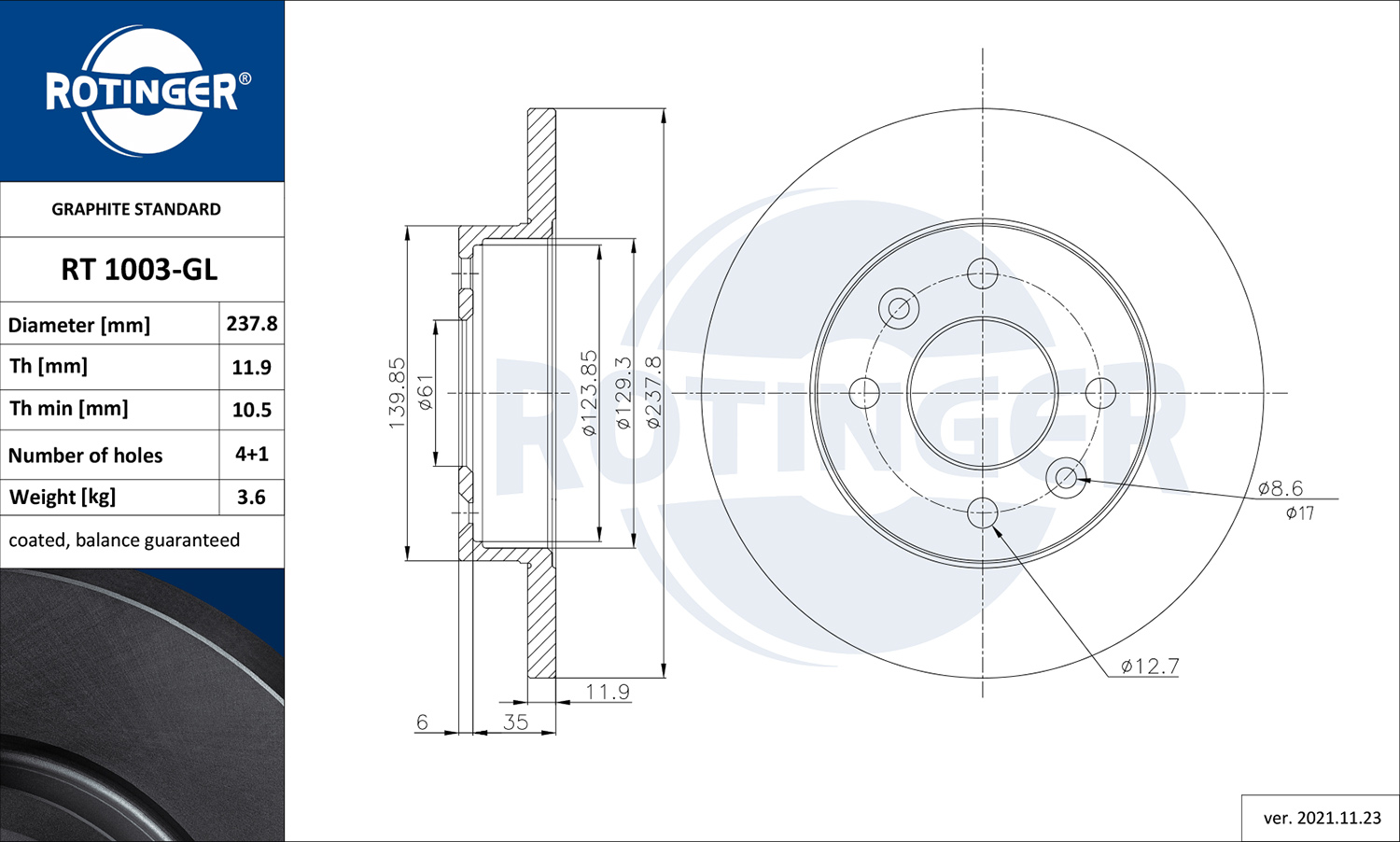

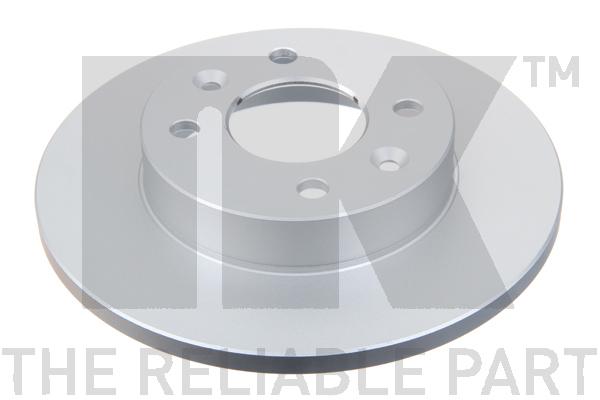

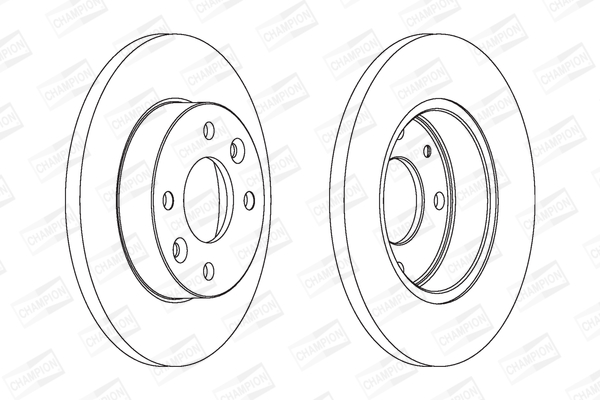

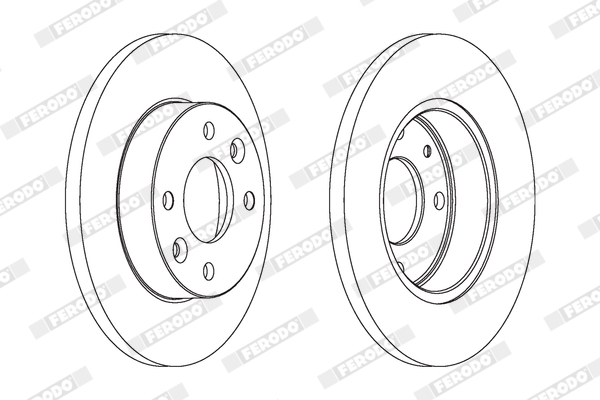

| Typ brzdového kotúča | plný |
| Povrch | potiahnutá |
| Vonkajżí priemer [mm] | 238 |
| Hrúbka brzd. kotúča (mm) | 12 |
| Výżka [mm] | 41 |
| Ráfik, počet dier | 4 |
| Rozstupová krużnica Ø [mm] | 100 |
| Centrovací priemer [mm] | 61 |
| Kontrolná značka | ECE R90 APPROVED |
| Minimálna hrúbka (mm) | 10,5 |
| Hmotnosť [kg] | 3,51 |
| Rozmiestnenie otvorov/Počet otvorov | 6/4 |
| Značka | Číslo |
|---|---|
| A.B.S. | 15112 OE |
| A.B.S. | 15112 |
| ABE | C3R002ABE |
| ACDelco | AC2023D |
| AP | 14068 E |
| AP | X 14068 |
| ATE | 24.0112-0116.1 |
| BARUM | BAR12116 |
| BENDIX | 561235BC |
| BENDIX | 561235B |
| BORG & BECK | BBD4841 |
| BOSCH | 0 986 478 105 |
| BRECK | BR 005 SA100 |
| BRECO | BS 7310 |
| BREMBO | 08.2958.75 |
| BREMBO | 08.2958.14 |
| BREMSI | DBA055S |
| CAR | 142.568 |
| CAR | HPD 568 |
| CIFAM | 800-082 |
| COMLINE | ADC1503 |
| DACIA | 2677509716 |
| DACIA | 6001 547 684 |
| DACIA | 6001 549 211 |
| DELPHI | BG2217 |
| DENCKERMANN | B130220 |
| DITAS | DFD1003 |
| DJ PARTS | BD1273 |
| E.T.F. | 19-4705 |
| EUROBRAKE | 5815313908 |
| EUROBRAKE | 5815203908 |
| FARCOM | 230821 |
| FEBI BILSTEIN | 09071 |
| FERODO | DDF055C-1 |
| FERODO | DDF055C |
| FERODO | DDF055-1 |
| FIRST LINE | FBD231 |
| FLENNOR | FB110010-C |
| FREMAX | BD-4705 |
| FREMAX | BD-4705e |
| fri.tech. | DF003 |
| FTE | 9082382 |
| FTE | BS3249 |
| FTE | 9072003 |
| FTE | BS3249B |
| GIRLING | 6010133 |
| GRAF | DF2882 |
| HELLA PAGID | 8DD 355 101-231 |
| HELLA PAGID | 8DD 355 101-241 |
| ICER | 78BD4705-2 |
| ICER | 78BD4705 |
| JP GROUP | 4363100109 |
| JURID | 561235JC |
| JURID | 561235J |
| KAGER | 37-0101 |
| KAMOKA | 103110 |
| KAWE | 6067 00 |
| KRAFT AUTOMOTIVE | 6045030 |
| LEMFÖRDER | 18146 03 |
| LPR | R1081P |
| MAGNETI MARELLI | 360406042100 |
| MAGNETI MARELLI | 353614008140 |
| MAPCO | 15108 |
| METELLI | 23-0082 |
| METZGER | 6067.00 |
| METZGER | 14068 E |
| MEYLE | 16-11 521 0001 |
| MINTEX | MDC297 |
| National | NBD023 |
| NK | 203908 |
| NK | 313908 |
| OPEN PARTS | BDA1446.10 |
| OPEN PARTS | BDR1446.10 |
| OPTIMAL | BS-0670 |
| PEX | 14.0472N |
| PEX | 14.0472 |
| PILENGA | 5146 |
| PROTECHNIC | PRD1105 |
| QH Benelux | HP55311 |
| QUINTON HAZELL | BDC3249BD |
| QUINTON HAZELL | BDC3249 |
| RAICAM | RD00657 |
| REMSA | 6067.00 |
| RENAULT | 6001 549 211 |
| RENAULT | 7701 204 282 |
| RENAULT | 7700 704 705 |
| RENAULT | 6001 547 684 |
| ROADHOUSE | 6067.00 |
| ROULUNDS BRAKING | D2023 |
| SASIC | 4004253J |
| sbs | 1815313908 |
| sbs | 1815203908 |
| SIMER | D1036 |
| SKF | VKBD 80343 S2 |
| ST-TEMPLIN | 01.25.42.107132 |
| STOP | 561235S |
| SWAG | 60 90 9071 |
| TEXTAR | 92036103 |
| TEXTAR | 92036100 |
| TOPRAN | 700 175 |
| TRISCAN | 8120 25105C |
| TRISCAN | 8120 25105 |
| TRUSTING | DF003 |
| TRW | DF1013 |
| VAICO | V46-40001 |
| VALEO | 186803 |
| VEMA | 98021 |
| VILLAR | 628.0532 |
| WAGNER | WGR0055-1 |
| WOKING | D6067.00 |
| ZIMMERMANN | 470.1079.52 |
| ZIMMERMANN | 470.1079.50 |
| ZIMMERMANN | 470.1079.00 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
DACIA |
||||
DACIA SANDERO |
||||
| 1.2 16V | 2008 - súčasnosť | D4F 732 | 55 | 1149 |
| 1.2 16V LPG | 2008 - súčasnosť | D4F 732 | 55 | 1149 |
| 1.4 (BS0C, BS0A, BS0G, BS1F, BS0E) | 2008 - súčasnosť | K7J 710, K7J 714 | 55 | 1390 |
| 1.4 MPI LPG | 2009 - súčasnosť | K7J 714 | 53 | 1390 |
| 1.5 dCi | 2010 - súčasnosť | K9K 892 | 55 | 1461 |
| 1.5 dCi | 2010 - súčasnosť | K9K 892 | 65 | 1461 |
| 1.5 dCi | 2008 - súčasnosť | K9K 792 | 50 | 1461 |
| 1.5 dCi | 2008 - súčasnosť | K9K 796 | 63 | 1461 |
| 1.6 (BS0D, BS0B, BS0F, BS0H) | 2008 - súčasnosť | K7M 710, K7M 718 | 64 | 1598 |
| 1.6 16V | 2011 - súčasnosť | K4M 690, K4M 694 | 77 | 1598 |
| 1.6 16V Bifuel | 2011 - súčasnosť | K4M 690, K4M 694, K4M 696 | 77 | 1598 |
| 1.6 MPI 85 (BS03) | 2010 - 2013 | K7M 800, K7M 818 | 62 | 1598 |
DACIA LOGAN (LS_) |
||||
| 1.2 16V (LS1N, LS02, BS02) | 2006 - súčasnosť | D4F 732, D4F 734 | 55 | 1149 |
| 1.2 16V LPG | 2006 - súčasnosť | D4F 734 | 55 | 1149 |
| 1.4 (LSOA, LSOC, LSOE, LSOG) | 2004 - súčasnosť | K7J 710, K7J 714 | 55 | 1390 |
| 1.4 MPI LPG (LS0C) | 2006 - 2012 | K7J 710, K7J 714 | 55 | 1390 |
| 1.5 dCi (LS04) | 2010 - súčasnosť | K9K 892 | 65 | 1461 |
| 1.5 dCi (LS04) | 2010 - 2012 | K9K 892 | 55 | 1461 |
| 1.5 dCi (LS0J, LS0Y) | 2005 - súčasnosť | K9K 790 | 48 | 1461 |
| 1.5 dCi (LS0K) | 2006 - 2012 | K9K 792 | 50 | 1461 |
| 1.5 dCi (LS0W) | 2007 - 2011 | K9K 796 | 63 | 1461 |
| 1.6 MPI 85 | 2010 - súčasnosť | K7M 800 | 62 | 1598 |
RENAULT |
||||
RENAULT RAPID Kasten/Großraumlimousine (F40_, G40_) |
||||
| 1.0 | 1986 - 1992 | C1C 706 | 27 | 956 |
| 1.1 (F401) | 1985 - 1995 | C1E 750, C1E 752, C1E 754, C1E 760, C1E 762, C1E 792 | 33 | 1108 |
| 1.1 (F40H) | 1987 - 1991 | C1E 756 | 33 | 1108 |
| 1.2 (F406, G40A) | 1991 - 1998 | C3G 710, C3G 712 | 40 | 1239 |
| 1.4 (F402) | 1985 - 1991 | C1J 768, C1J 780 | 43 | 1397 |
| 1.4 (F40D) | 1994 - 1998 | E7J 728 | 58 | 1390 |
| 1.4 (F40M) | 1986 - 1991 | C2J 784 | 44 | 1397 |
| 1.4 (F40U, F40V) | 1991 - 1998 | E7J 720, E7J 724, E7J 726, E7J 773 | 55 | 1390 |
| 1.4 Cat (F407) | 1988 - 1998 | C3J 700, C3J 702, C3J 760, C3J 762 | 43 | 1390 |
| 1.6 D (F404) | 1986 - 1998 | F8M 720, F8M 730, F8M 736, F8M 760 | 40 | 1595 |
| 1.9 D (F40P, F40N, F40E) | 1991 - 1998 | F8Q 646, F8Q 722, F8Q 724, F8Q 774, F8Q 776 | 47 | 1870 |
| 1.9 D (F40R) | 1994 - 1998 | F8Q 640, F8Q 648, F8Q 682 | 40 | 1870 |
RENAULT CLIO II (BB_, CB_) |
||||
| 1.0 | 2000 - 2001 | D7D 760 | 40 | 999 |
| 1.2 (BB0A, BB0F, BB10, BB1K, BB28, BB2D, BB2H, CB0A,... | 1998 - 2010 | D7F 710, D7F 720, D7F 722, D7F 726, D7F 744, D7F 746, D7F 764, D7F 766 | 43 | 1149 |
| 1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,... | 2001 - 2016 | D4F 706, D4F 712, D4F 714, D4F 722, D4F 728 | 55 | 1149 |
| 1.2 LPG | 1998 - 2009 | D7F 764, D7F 766 | 43 | 1149 |
| 1.2 LPG (BB0A, CB0A) | 1999 - 2001 | D7F 722 | 44 | 1149 |
| 1.5 dCi | 2001 - 2006 | K9K 704 | 42 | 1461 |
| 1.5 dCi (B/C2J) | 2004 - 2012 | K9K 700, K9K 714 | 50 | 1461 |
| 1.5 dCi (B/CB03) | 2001 - 2003 | K9K 702 | 59 | 1461 |
| 1.5 dCi (B/CB07) | 2001 - 2009 | K9K 700, K9K 704 | 48 | 1461 |
| 1.5 dCi (B/CB08) | 2001 - 2005 | K9K 702 | 60 | 1461 |
| 1.5 dCi (B/CB3M) | 2005 - 2010 | K9K 740 | 47 | 1461 |
| 1.9 D (B/CB0E, BB0J) | 1998 - 2005 | F8Q 630, F8Q 632 | 47 | 1870 |
| 1.9 D (B/CB0J) | 2000 - 2001 | F8Q 630, F8Q 632 | 48 | 1870 |
RENAULT 11 (B/C37_) |
||||
| 1.1 (B/C371) | 1983 - 1986 | C1E 715, C1E 720 | 35 | 1108 |
| 1.2 (B37S, C375) | 1984 - 1988 | C1G 700, C1G 710 | 40 | 1237 |
| 1.4 (B/C372, B/C37C) | 1983 - 1988 | C1J 715, C2J 730 | 44 | 1397 |
| 1.4 (B/C373) | 1983 - 1985 | C2J 718, C2J 757 | 50 | 1397 |
| 1.4 (B/C373) | 1983 - 1985 | C2J 717, C2J 755 | 53 | 1397 |
| 1.4 (B/C373, B/C37R) | 1983 - 1988 | C2J 720, C2J 766, C2J 767, C2J 768 | 49 | 1397 |
| 1.6 D (B/C374) | 1983 - 1988 | F8M 700, F8M 720, F8M 730 | 40 | 1595 |
| 1.7 (B/C376) | 1983 - 1987 | F2N 700, F2N 704 | 59 | 1721 |
| 1.7 (B/C37F) | 1984 - 1988 | F3N 718 | 55 | 1721 |
| 1.7 (B/C37L) | 1986 - 1988 | F2N 730 | 54 | 1721 |
RENAULT 9 (L42_) |
||||
| 1.1 (L421) | 1981 - 1987 | C1E 715, C1E 720 | 35 | 1108 |
| 1.2 (L42S) | 1985 - 1988 | C1G 700, C1G 710 | 40 | 1237 |
| 1.4 (L422, L42C) | 1981 - 1988 | C1J 715, C1J 792, C1J 796, C2J 730 | 44 | 1397 |
| 1.4 (L423) | 1981 - 1985 | C2J 717, C2J 755 | 53 | 1397 |
| 1.4 (L423, L42R) | 1985 - 1988 | C2J 720, C2J 766, C2J 767, C2J 768 | 49 | 1397 |
| 1.4 Automatik (L423) | 1981 - 1985 | C2J 718, C2J 757 | 50 | 1397 |
| 1.6 D (L424) | 1982 - 1988 | F8M 700, F8M 720, F8M 730 | 40 | 1595 |
| 1.7 (L426) | 1984 - 1989 | F2N 700, F2N 704 | 59 | 1721 |
| 1.7 (L42F) | 1986 - 1988 | F3N 718 | 54 | 1721 |
| 1.7 (L42L) | 1986 - 1988 | F2N 730 | 55 | 1721 |
RENAULT CLIO I (B/C57_, 5/357_) |
||||
| 1.2 (5/357Y, 5/357K) | 1996 - 1998 | D7F 730 | 43 | 1149 |
| 1.2 (5/357Y, 5/357K) | 1996 - 1998 | D7F 730 | 40 | 1149 |
| 1.2 (B/C/S577) | 1996 - 1996 | C3G 720 | 40 | 1239 |
| 1.2 (B/C/S57A, B/C57S, 5/357F, 5/357J, 5/357L, 5/357R) | 1990 - 1998 | E7F 700, E7F 708, E7F 750 | 43 | 1171 |
| 1.2 (B/C57R, B575, B57A) | 1991 - 1996 | E7F 700, E7F 704, E7F 706, E7F 708, E7F 750 | 40 | 1171 |
| 1.4 | 1991 - 1998 | E7J 710, E7J 711 | 59 | 1390 |
| 1.4 (B/C57T, B/C57Y) | 1991 - 1998 | E7J 601, E7J 718, E7J 719, E7J 754 | 58 | 1390 |
| 1.9 D | 1997 - 1998 | F8Q 678 | 40 | 1870 |
| 1.9 D | 1996 - 1998 | F8Q 632, F8Q 676, F8Q 696, F8Q 714 | 48 | 1870 |
| 1.9 D (B/C/S576, B/C/S57L) | 1991 - 1998 | F8Q 730, F8Q 732 | 47 | 1870 |
RENAULT TWINGO I (C06_) |
||||
| 1.2 (C066, C068) | 1996 - 2007 | D7F 700, D7F 701, D7F 702, D7F 703, D7F 704 | 43 | 1149 |
| 1.2 (C067) | 1996 - 2007 | D7F 700, D7F 701 | 40 | 1149 |
RENAULT THALIA I (LB_) |
||||
| 1.4 | 2000 - súčasnosť | K7J 700 | 55 | 1390 |
RENAULT LOGAN I (LS_) |
||||
| 1.4 | 2004 - súčasnosť | K7J 710 | 55 | 1390 |
| 1.5 dCi | 2007 - súčasnosť | K9K 792 | 50 | 1461 |
| 1.6 | 2004 - súčasnosť | K7M 710 | 64 | 1598 |
| 1.6 (LS0L, LS09, LS0V, LS0P, LS18, LS1S, LS1V, LS1Y,... | 2007 - 2013 | K4M 690, K4M 694, K4M 696, K4M 697, K4M 698 | 77 | 1598 |
RENAULT LOGAN I Kombi (KS_) |
||||
| 1.4 | 2007 - súčasnosť | K7J 710 | 55 | 1390 |
| 1.5 dCi | 2007 - súčasnosť | K9K 792 | 50 | 1461 |
| 1.6 | 2007 - súčasnosť | K7M 710 | 64 | 1598 |
| 1.6 (KS0L, KS0M, KS0P, KS1S) | 2007 - súčasnosť | K4M 690, K4M 696, K4M 697 | 77 | 1598 |
RENAULT SANDERO/STEPWAY I (BS_) |
||||
| 1.4 | 2009 - súčasnosť | K7J 710 | 55 | 1390 |
| 1.6 | 2007 - súčasnosť | K7M 710 | 75 | 1598 |
| 1.6 | 2010 - súčasnosť | K7M 718 | 62 | 1598 |
| 1.6 | 2007 - 2013 | K4M 697 | 76 | 1598 |
| 1.6 (BS0H, BS0F) | 2009 - súčasnosť | K7M 710, K7M 718 | 64 | 1598 |
RENAULT 19 II Chamade (L53_) |
||||
| 1.4 (532) | 1992 - 1995 | C3J 710 | 43 | 1390 |
| 1.4 (L535) | 1993 - 1995 | E7J 742 | 55 | 1390 |
| 1.7 (L53B) | 1992 - 1995 | F3N 740, F3N 741 | 54 | 1721 |
| 1.8 (453A/F) | 1992 - 1995 | F3P 706, F3P 760 | 66 | 1794 |
| 1.8 (L53Y) | 1992 - 1995 | F3P 704, F3P 705, F3P 706, F3P 707, F3P 708, F3P 760 | 65 | 1794 |
| 1.9 D (L53J) | 1992 - 1995 | F8Q 742 | 47 | 1870 |
| 1.9 dT (L53T) | 1992 - 1995 | F8Q 744 | 66 | 1870 |
RENAULT SUPER 5 (B/C40_) |
||||
| 1.4 (B/C402) | 1984 - 1988 | C1J 768, C1J 780 | 43 | 1397 |
| 1.4 (B/C403) | 1984 - 1989 | C2J 700, C2J 780, C2J 781, C2J 788, C2J 789, C2J 798 | 52 | 1397 |
| 1.4 (B/C40J) | 1987 - 1989 | C2J 782 | 49 | 1397 |
| 1.4 (B/C40M) | 1987 - 1990 | C2J 784 | 44 | 1397 |
| 1.4 Cat (B/C/407) | 1985 - 1996 | C3J 700, C3J 702, C3J 760 | 43 | 1390 |
| 1.6 D (B/C/404) | 1985 - 1996 | F8M 720, F8M 730 | 40 | 1595 |
| 1.7 (B/C408) | 1986 - 1995 | F3N 716, F3N 717 | 54 | 1721 |
RENAULT 19 II (B/C53_) |
||||
| 1.4 (B/C532) | 1992 - 1995 | C3J 710 | 43 | 1390 |
| 1.4 (B/C535) | 1992 - 1995 | E7J 742 | 55 | 1390 |
| 1.7 (B/C53B) | 1992 - 1995 | F3N 740, F3N 741 | 54 | 1721 |
| 1.8 (5/353A) | 1992 - 1995 | F3P 706, F3P 760 | 66 | 1794 |
| 1.8 (B/C53Y) | 1992 - 1995 | F3P 706, F3P 707, F3P 708, F3P 760 | 65 | 1794 |
| 1.9 D (B/C53J) | 1992 - 1995 | F8Q 742 | 47 | 1870 |
| 1.9 dT (B/C53T) | 1992 - 1995 | F8Q 744 | 66 | 1870 |
RENAULT 19 I (B/C53_) |
||||
| 1.4 (B/C53P) | 1989 - 1993 | C2J 772 | 43 | 1397 |
| 1.4 Cat (B/C532) | 1989 - 1992 | C3J 710 | 43 | 1390 |
| 1.7 (B/C53B) | 1988 - 1992 | F3N 740, F3N 741 | 54 | 1721 |
| 1.7 (B/C53C) | 1988 - 1992 | F3N 742, F3N 743 | 66 | 1721 |
| 1.9 D (B/C534, B/C53J) | 1988 - 1992 | F8Q 706, F8Q 742 | 47 | 1870 |
RENAULT 19 I Chamade (L53_) |
||||
| 1.4 (L532, L53P) | 1988 - 1992 | C2J 772, C3J 710 | 43 | 1390 |
| 1.7 (L53B) | 1989 - 1992 | F3N 740, F3N 741 | 54 | 1721 |
| 1.7 (L53C) | 1988 - 1992 | F3N 742, F3N 743 | 66 | 1721 |
| 1.9 D (L534, L53J) | 1989 - 1992 | F8Q 706, F8Q 742 | 47 | 1870 |
RENAULT MEGANE I Classic (LA0/1_) |
||||
| 1.4 (LA0E, LA0V) | 1996 - 2003 | E7J 626, E7J 764 | 55 | 1390 |
| 1.6 i (LA0L) | 1996 - 1999 | K7M 720 | 55 | 1598 |
| 1.9 D (LA0A, LA0U, LA0R) | 1996 - 2003 | F8Q 620, F8Q 622, F8Q 624 | 47 | 1870 |
RENAULT MEGANE I (BA0/1_) |
||||
| 1.4 e (BA0E, BA0V) | 1996 - 2003 | E7J 626, E7J 764 | 55 | 1390 |
| 1.4 Eco (BA0T) | 1996 - 1999 | E7J 624 | 52 | 1390 |
| 1.6 i (BA0L) | 1996 - 1999 | K7M 720 | 55 | 1598 |
| 1.9 D Eco (BA0A, BA0U, BA0R) | 1996 - 2003 | F8Q 620, F8Q 622, F8Q 624 | 47 | 1870 |
RENAULT 21 (B48_) |
||||
| 1.7 (B48F) | 1989 - 1992 | F3N 726 | 54 | 1721 |
| 1.9 D (B48H, B48I) | 1989 - 1994 | F8Q 710 | 47 | 1870 |
RENAULT 21 Stufenheck (L48_) |
||||
| 1.7 (L481) | 1986 - 1987 | F2N 712 | 55 | 1721 |
| 1.7 (L48M, L48F) | 1986 - 1994 | F2N 750, F3N 726 | 54 | 1721 |
2013 -2025 RozbiteAuto.sk - certifikovaný predajca autodielov
