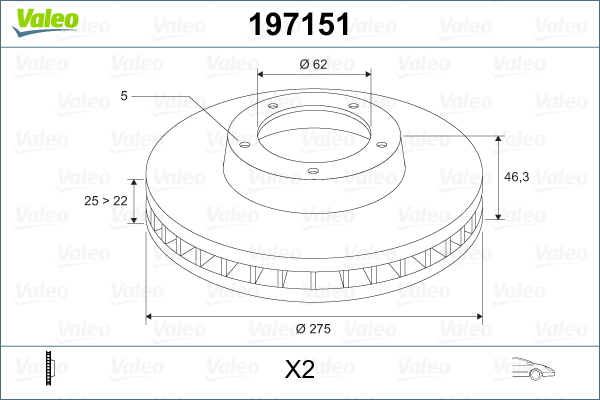

| Typ brzdového kotúča | s vnútorným chladením |
| Povrch | potiahnutá |
| Vonkajżí priemer [mm] | 275 |
| Hrúbka brzd. kotúča (mm) | 25 |
| Výżka [mm] | 46 |
| Ráfik, počet dier | 5 |
| Rozstupová krużnica Ø [mm] | 114 |
| Centrovací priemer [mm] | 62 |
| Kontrolná značka | ECE R90 APPROVED |
| Minimálna hrúbka (mm) | 22 |
| Hmotnosť [kg] | 6,4 |
| Rozmiestnenie otvorov/Počet otvorov | 7/5 |
| Značka | Číslo |
|---|---|
| A.B.S. | 18012 |
| AP | 25678 V |
| ASHIKA | 60-02-2010 |
| ASHUKI by Palidium | 0990-4612 |
| ATE | 24.0125-0178.1 |
| BLUE PRINT | ADT343231 |
| BORG & BECK | BBD4606 |
| BOSCH | 0 986 479 428 |
| BRECO | BV 9288 |
| BREMBO | 09.B520.11 |
| CAR | HPD 1416 |
| CAR | 142.1416 |
| CIFAM | 800-1055C |
| COMLINE | ADC01136V |
| DELPHI | BG4304 |
| DENCKERMANN | B130433 |
| E.T.F. | 19-1616 |
| EUROBRAKE | 58153145173 |
| EUROBRAKE | 58152045173 |
| FEBI BILSTEIN | 31473 |
| FERODO | DDF1838 |
| FERODO | DDF1838-1 |
| FIRST LINE | FBD1678 |
| FREMAX | BD-2881 |
| fri.tech. | DF1226 |
| FTE | 9072444 |
| FTE | BS7667B |
| FTE | BS7667 |
| FTE | 9082312 |
| HELLA PAGID | 8DD 355 117-361 |
| ICER | 78BD2881-2 |
| IPS Parts | IBT-1259 |
| JAPANPARTS | DI-2010 |
| JAPKO | 602010 |
| JURID | 563086JC |
| KAISHIN | CBR431 |
| KAWE | 61077 10 |
| METELLI | 23-1055C |
| METZGER | 61077.10 |
| MEYLE | 30-85 521 0010 |
| MINTEX | MDC2285 |
| NK | 2045173 |
| NK | 3145173 |
| PAGID | 55327PRO |
| PILENGA | V390 |
| RAICAM | RD01310 |
| REMSA | 61077.10 |
| ROADHOUSE | 61077.10 |
| SWAG | 81 93 1473 |
| TEXTAR | 92232703 |
| TEXTAR | 92162100 |
| TOYOTA | 43512-42080 |
| TOYOTA | 43512-42040 |
| TRUSTING | DF1226 |
| VAICO | V70-80023 |
| VALEO | 197151 |
| WOKING | D61077.10 |
| ZIMMERMANN | 590.2800.52 |
| ZIMMERMANN | 590.2800.50 |
| ZIMMERMANN | 590.2800.00 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
TOYOTA |
||||
TOYOTA RAV 4 III (_A3_) |
||||
| 2.0 (ZSA35) | 2009 - 2013 | 3ZR-FAE | 109 | 1987 |
| 2.0 (ZSA35_, ZSA35R) | 2008 - 2013 | 3ZR-FAE | 116 | 1987 |
| 2.0 4WD (ACA30_, ACA30R) | 2006 - 2013 | 1AZ-FE | 112 | 1998 |
| 2.0 4WD (ZSA30) | 2009 - 2013 | 3ZR-FAE | 109 | 1987 |
| 2.0 4WD (ZSA30_, ZSA30R) | 2008 - 2013 | 3ZR-FAE | 116 | 1987 |
| 2.2 D (ALA35_) | 2008 - 2013 | 2AD-FHV, 2AD-FTV | 110 | 2231 |
| 2.2 D 4WD (ALA30_, ALA30R) | 2006 - 2012 | 2AD-FTV | 100 | 2231 |
| 2.2 D 4WD (ALA30_, ALA30R) | 2006 - 2013 | 2AD-FHV | 130 | 2231 |
| 2.2 D 4WD (ALA30_, ALA30R) | 2008 - 2013 | 2AD-FHV, 2AD-FTV | 110 | 2231 |
| 2.4 (ACA36, ACA38) | 2005 - 2013 | 2AZ-FE | 125 | 2362 |
| 2.4 4WD (ACA31, ACA33) | 2005 - 2013 | 2AZ-FE | 125 | 2362 |
| 3.5 4WD (GSA33) | 2005 - 2012 | 2GR-FE | 201 | 3456 |
