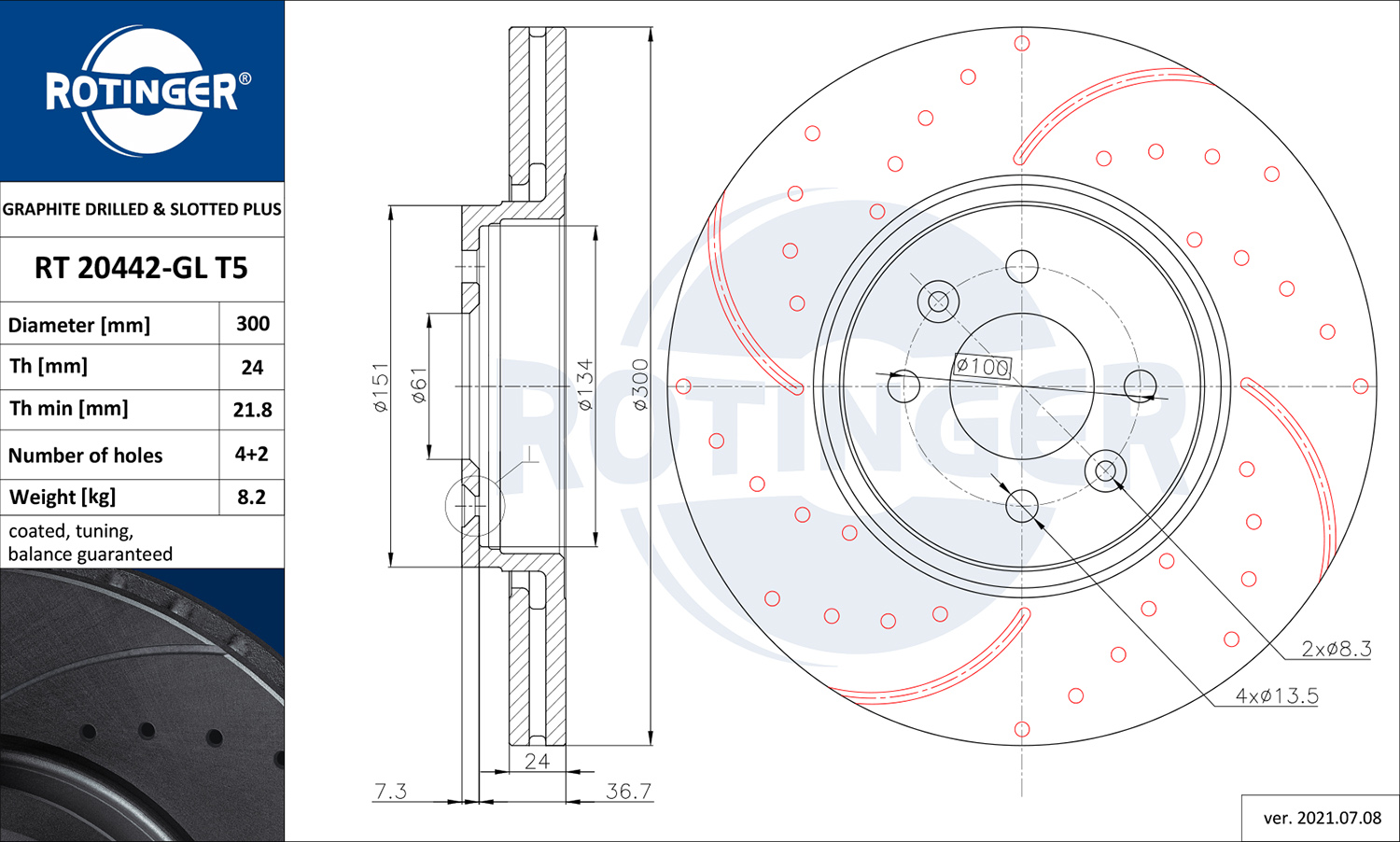

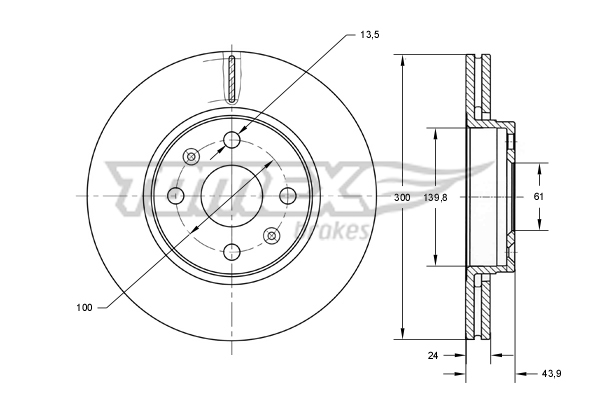

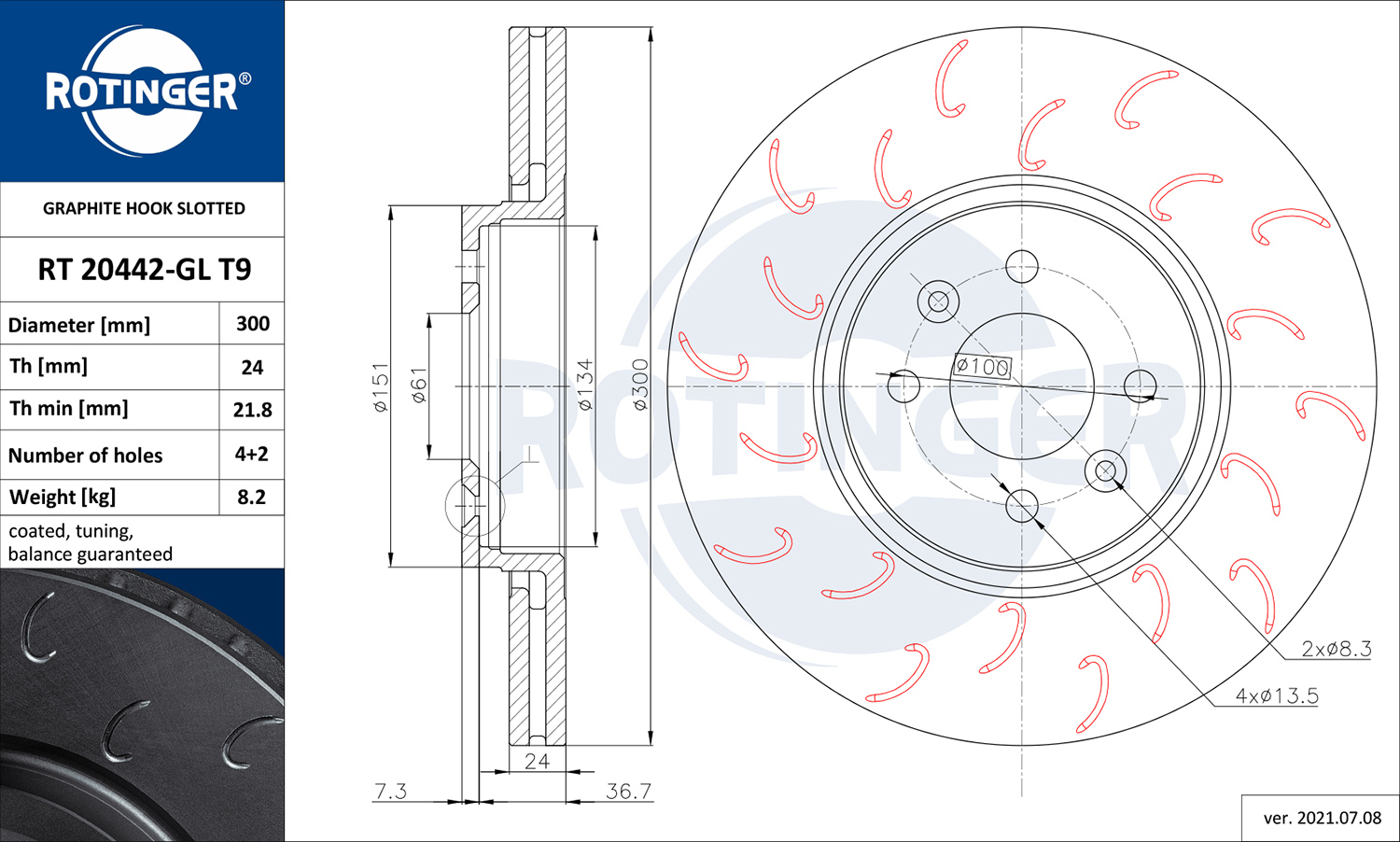

| Strana montáże | predna naprava |
| Vonkajżí priemer [mm] | 300 |
| Výżka [mm] | 43,9 |
| Hrúbka brzd. kotúča (mm) | 24 |
| Minimálna hrúbka (mm) | 21,8 |
| Centrovací priemer [mm] | 61 |
| Rozstupová krużnica Ø [mm] | 100 |
| Ø otvoru pre čap kolesa [mm] | 13,5 |
| Počet dier | 4 |
| Typ brzdového kotúča | vetraný |
| Potrebný počet kusov | 2 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
RENAULT |
||||
RENAULT GRAND SCÉNIC II (JM0/1_) |
||||
| 1.5 dCi | 2006 - 2008 | K9K 734 | 76 | 1461 |
| 1.5 dCi (JM02, JM13) | 2004 - 2008 | K9K 728 | 74 | 1461 |
| 1.5 dCi (JM1E) | 2005 - 2009 | K9K 732 | 78 | 1461 |
| 1.6 | 2004 - 2006 | K4M 761, K4M 782 | 83 | 1598 |
| 1.9 dCi | 2005 - 2009 | F9Q 803, F9Q 804, F9Q 812, F9Q 816, F9Q 818 | 85 | 1870 |
| 1.9 dCi (JM0G, JM12, JM1G, JM2C) | 2004 - 2006 | F9Q 812 | 88 | 1870 |
| 1.9 dCi (JM14) | 2004 - 2008 | F9Q 803, F9Q 804, F9Q 816, F9Q 818 | 96 | 1870 |
| 1.9 dCi (JM15) | 2005 - 2008 | F9Q E 804 | 81 | 1870 |
| 2.0 | 2004 - 2009 | F4R 770, F4R 771 | 99 | 1998 |
| 2.0 | 2004 - 2009 | F4R 776 | 120 | 1998 |
RENAULT SCÉNIC II (JM0/1_) |
||||
| 1.5 dCi (JM16) | 2007 - 2008 | K9K 728, K9K 734 | 76 | 1461 |
| 1.9 D | 2006 - 2008 | F9Q 803, F9Q 804, F9Q 812, F9Q 816, F9Q 818 | 85 | 1870 |
| 1.9 dCi | 2003 - 2008 | F9Q 804 | 92 | 1870 |
| 1.9 dCi (JM0G, JM12, JM1G, JM2C) | 2003 - 2006 | F9Q 812 | 88 | 1870 |
| 1.9 dCi (JM14) | 2005 - 2008 | F9Q 803, F9Q 804, F9Q 816, F9Q 818 | 96 | 1870 |
| 1.9 dCi (JM15) | 2005 - 2008 | F9Q 804 | 81 | 1870 |
| 2.0 (JM05, JM0U, JM1N, JM1U, JM2V) | 2003 - 2009 | F4R 770, F4R 771 | 99 | 1998 |
| 2.0 16V Turbo (JM0W) | 2004 - 2008 | F4R 776 | 120 | 1998 |
