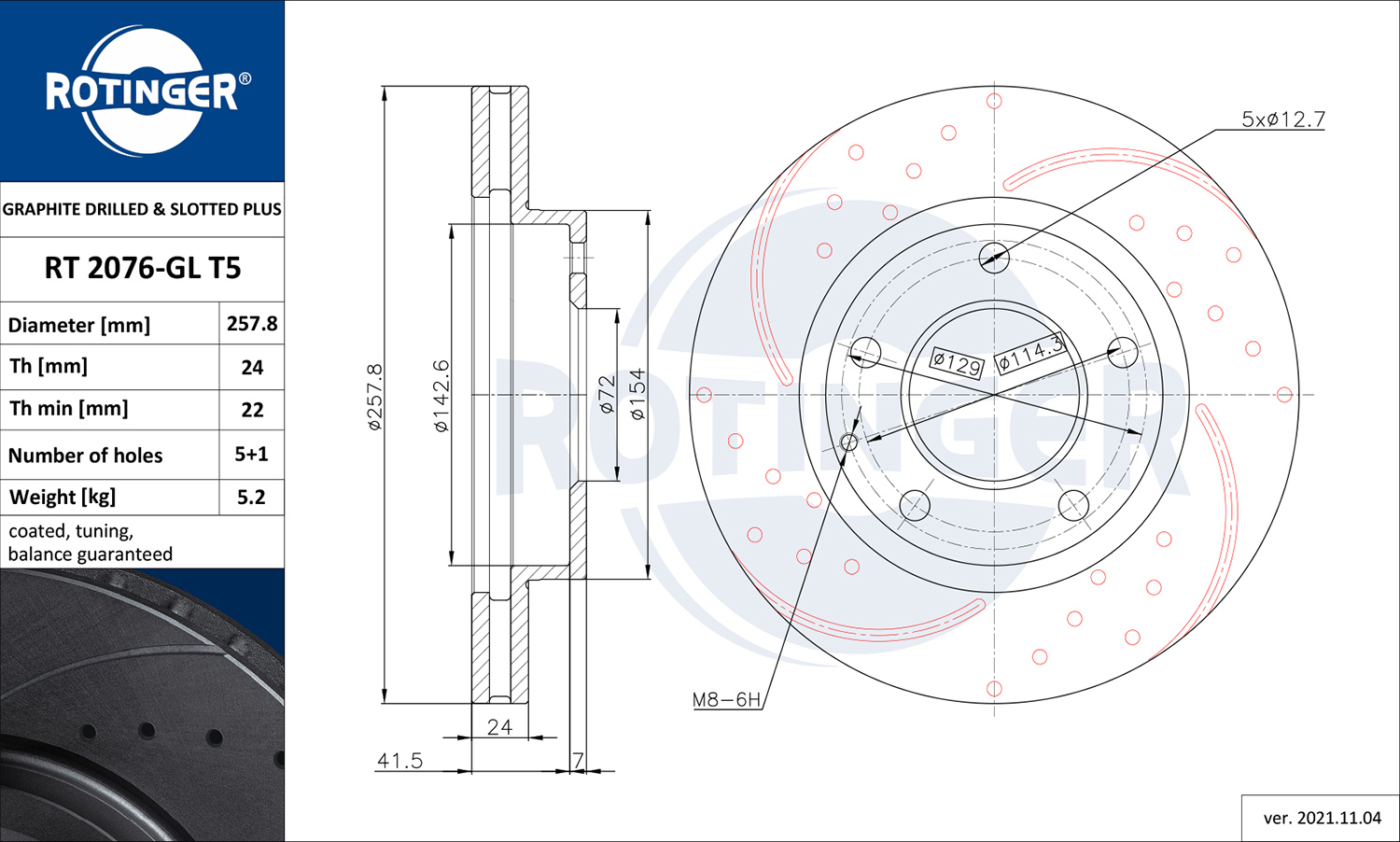

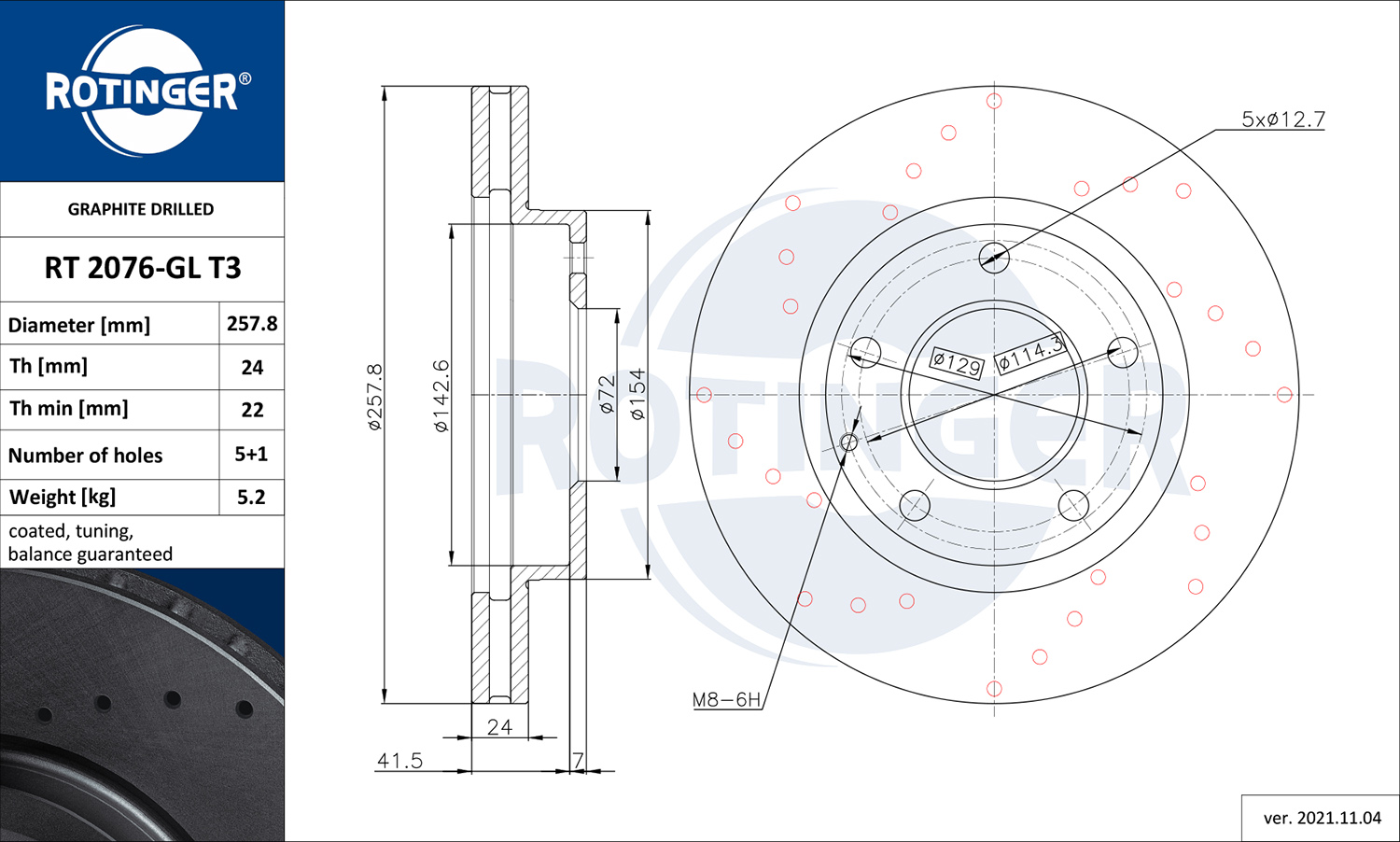

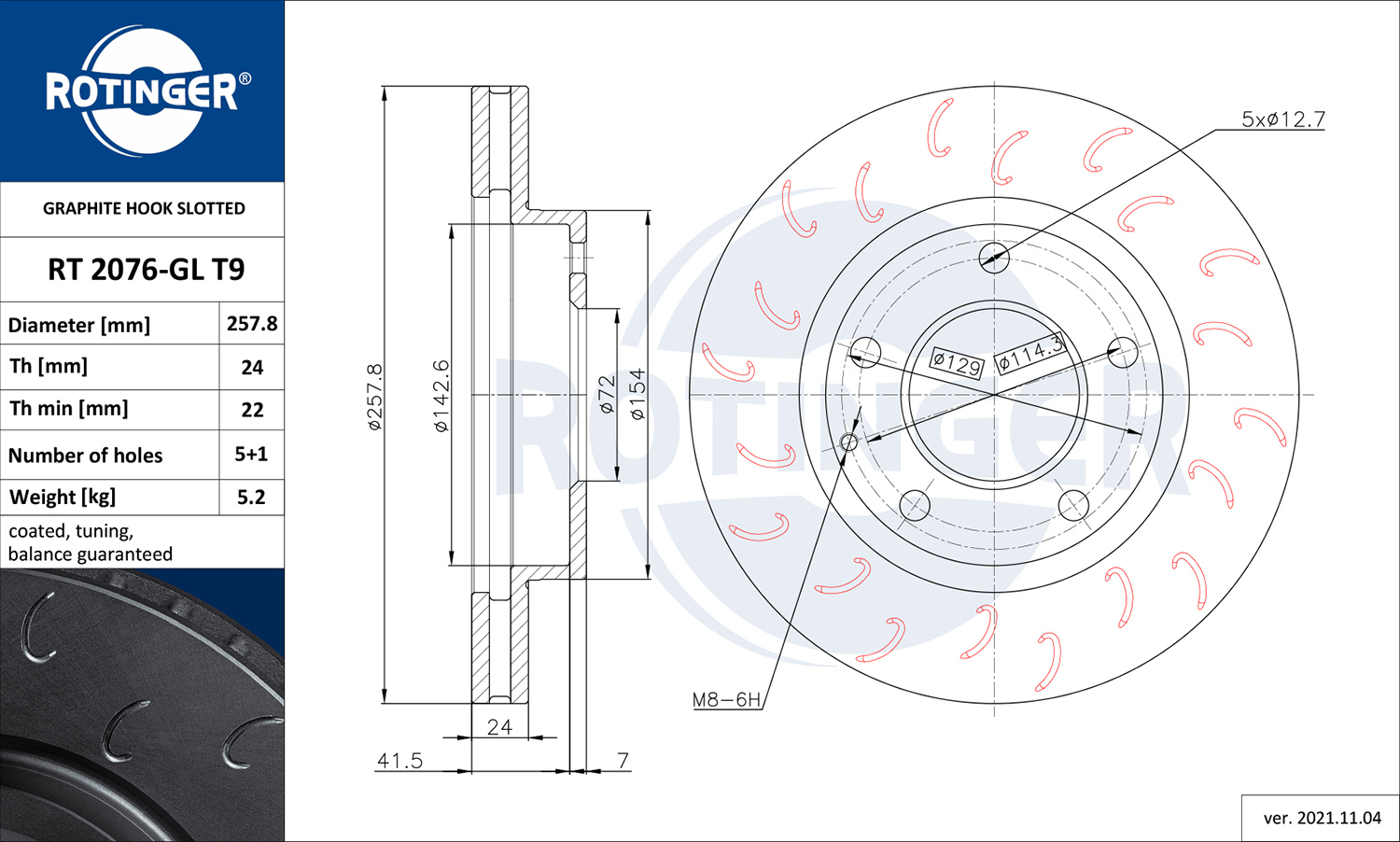

| Kontrolná značka | R90 Homologated |
| Výżka [mm] | 48,5 |
| Hmotnosť [kg] | 10,5 |
| Typ brzdového kotúča | vetraný |
| Hrúbka brzd. kotúča (mm) | 24 |
| Minimálna hrúbka (mm) | 22 |
| Vonkajżí priemer [mm] | 258 |
| Počet dier | 5 |
| Centrovací priemer [mm] | 72 |
| Użahovací moment [Nm] | 100 |
| Rozstupová krużnica Ø [mm] | 114,3 |
| Povrch | potiahnutá |
| Typ spojenia | Krabica |
| Jednotka mnożstva | Sada |
| Doplnkový tovar/ Dopňujúca informácia 2 | bez skrutiek |
| Verzia | JC |
| Dĺżka balenia [cm] | 27 |
| Výżka balenia [cm] | 11 |
| Značka | Číslo |
|---|---|
| A.B.S. | 16089 |
| A.B.S. | 16089 |
| APEC | DSK524 |
| ASHIKA | 6003348 |
| ATE | 24032401291 |
| ATE | 24012401291 |
| ATE | 424129 |
| ATE | 24.0124-0129.1 |
| BENDIX | 561716BC |
| BENDIX | 561716B |
| BENDIX | 520521 |
| BENDIX Braking | BDS1786 |
| BLUE PRINT | ADM54341 |
| BORG & BECK | BBD4997 |
| BOSCH | 0986478385 |
| BOSCH | 0 986 478 227 |
| BOSCH | 986478385 |
| BOSCH | 0986478370 |
| BOSCH | 0 986 479 B25 |
| BOSCH | BD2026 |
| BOSCH | 986478227 |
| BOSCH | 0986478227 |
| BOSCH | 0 986 479 844 |
| BRADI | 1264424 |
| BRADI | 1.2644.2.4 |
| Brake ENGINEERING | 955281 |
| Brake ENGINEERING | DI955281 |
| BRECO | BS8059 |
| BREMBO | 09558414 |
| BREMBO | 09508420 |
| BREMBO | 09.5584.10 |
| BREMBO | 09558410 |
| BREMBO | 09.5584.14 |
| BREMBO | 09519610 |
| BREMBO | 09.5584.11 |
| CHAMPION | 561716CH |
| CIFAM | 800347 |
| CIFAM | 800-347 |
| COMLINE | AND6487 |
| COMLINE | ADC0416V |
| DELPHI | BG2779 |
| DELPHI | BG2444 |
| DELPHI | BG779 |
| DELPHI | BG2424 |
| DON | PCD12352 |
| FEBI BILSTEIN | 10726 |
| FERODO | DDF496C-1 |
| FERODO | DDF496 |
| FERODO | DDF496C |
| FERODO | DDF496-1 |
| FIRST LINE | FBD502 |
| FORD | GA5Y3325X |
| FORD | 4146389 |
| FORD | 3958455 |
| FORD | 1023099 |
| FORD | GA3Y3325X |
| FORD | YS8J2C502AA |
| FORD | 3898529 |
| FORD | F32Z1125A |
| FORD | 3395510 |
| FORD USA | F32Z-1125A |
| FORD USA | 3958455 |
| FORD USA | YS8J2C502AA |
| FORD USA | 3898529 |
| FORD USA | F32Z1125A |
| FORD USA | 3395510 |
| FORD USA | 4146389 |
| FTE | BS3951B |
| FTE | BS3951 |
| FTE | BS3688 |
| GALFER | 24428VF |
| GIRLING | 6027041 |
| GRAF | DF29347 |
| HELLA PAGID | 52015 |
| HELLA PAGID | 8DD 355 103-221 |
| HERTH+BUSS JAKOPARTS | J3303048 |
| HERTH+BUSS JAKOPARTS | J3302066 |
| HP (ZEBRA) | 57437 |
| ICER | 78BD3258 |
| INTERBRAKE | BD2332 |
| JAPANPARTS | DI348 |
| JAPANPARTS | DI-348 |
| JURATEK | FOR149 |
| JURID | 561716JC |
| JURID | 561716J |
| KAVO PARTS | BR4731 |
| LPR | M5701V |
| LUCAS ELECTRICAL | DF2704 |
| MAZDA | GADY3325XE |
| MAZDA | GA5Y3325XC |
| MAZDA | GA4Y3325XH |
| MAZDA | GA4Y3325XC |
| MAZDA | GA4Y3325X |
| MAZDA | GA2Y3325XA |
| MAZDA | GA5Y3325XE |
| MAZDA | GA5Y3325XB |
| MAZDA | GA5Y-3325X |
| MAZDA | GA4Y3325XE |
| MAZDA | GA4Y3325XB |
| MAZDA | GA3Y3325X |
| MAZDA | GA2Y3325X |
| MAZDA | GA5Y3325XD |
| MAZDA | GA5Y3325X |
| MAZDA | GA4Y3325XJ |
| MAZDA | GA4Y3325XD |
| MAZDA | GA4Y3325XA |
| MAZDA | 3958455 |
| METELLI | 230347 |
| METELLI | 23-0347 |
| METZGER | 1524024 |
| METZGER | 6110409 |
| MEYLE | 715 521 7028/PD |
| MEYLE | 715 521 7028 |
| MGA | D1147 |
| MINTEX | MDC666 |
| National | NBD521 |
| NECTO | WN844 |
| NK | 313227 |
| NK | 203227 |
| OBTEC A/S | 815222210V |
| OPTIMAL | BS-2030C |
| PAGID | 53619 |
| PAGID | 52512 |
| PAGID | 52015 |
| QH Benelux | 57437 |
| QUINTON HAZELL | BSF3951 |
| QUINTON HAZELL | BDC3951P |
| QUINTON HAZELL | BDC3951 |
| REMSA | 627720 |
| REMSA | 6203.10 |
| REMSA | 620310 |
| ROADHOUSE | 6203.1 |
| ROADHOUSE | 640210 |
| ROADHOUSE | 6203.10 |
| ROULUNDS BRAKING | D2205 |
| sbs | 1815203227 |
| STOP | 561716S |
| TEXTAR | 98200062001 |
| TEXTAR | 98200043101 |
| TEXTAR | 98200 0620 |
| TEXTAR | 92062000 |
| TEXTAR | 982000620 |
| TEXTAR | 982000431 |
| TEXTAR | 98200055801 |
| TEXTAR | 98200 0620 0 1 |
| TEXTAR | 92062003 |
| TOYOTA | 4351212490 |
| TOYOTA | 4351212320 |
| TOYOTA | 4351212250 |
| TOYOTA | 4351212440 |
| TOYOTA | 4351212310 |
| TOYOTA | 4351212330 |
| TOYOTA | 4351212290 |
| TRUSTING | DF302 |
| TRW | DF1423 |
| TRW | DF2704 |
| TRW | DF1221 |
| VALEO | 186457 |
| WAGNER | WGR0496-1 |
| WOKING | D6203.10 |
| ZIMMERMANN | 370306500 |
| ZIMMERMANN | 370.3065.00 |
| ZIMMERMANN | 370.3065.52 |
| ZIMMERMANN | 440203400 |
| ZIMMERMANN | 370.3065.20 |
| ZIMMERMANN | 590255100 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
FORD ASIA & OCEANIA |
||||
FORD ASIA & OCEANIA TELSTAR Stufenheck |
||||
| 2.0 | 1991 - 1998 | FS83, FS84 | 86 | 1991 |
| 2.5 | 1991 - 1995 | FLY1 | 123 | 2497 |
FORD AUSTRALIA |
||||
FORD AUSTRALIA TELSTAR Stufenheck (AX) |
||||
| 2.5 | 1994 - 1995 | KL-ZE | 123 | 2497 |
FORD USA |
||||
FORD USA PROBE II (ECP) |
||||
| 2.0 16V | 1993 - 1998 | FS | 85 | 1991 |
| 2.5 V6 24V | 1993 - 1998 | KL | 119 | 2497 |
| 2.5 V6 24V | 1994 - 1998 | KL | 120 | 2497 |
HAIMA (FAW) |
||||
HAIMA (FAW) FREEMA |
||||
| 1.6 | 2009 - 2017 | HM479Q-A | 88 | 1598 |
MAZDA |
||||
MAZDA 626 V (GF) |
||||
| 1.6 (GF6P) | 1997 - 1999 | B6EW | 79 | 1597 |
| 1.8 (GF8P) | 1997 - 1999 | FPY3 | 66 | 1840 |
| 1.8 (GF8P) | 1999 - 2002 | FP9A | 74 | 1840 |
| 1.9 | 1997 - 1999 | FPY3 | 66 | 1840 |
| 1.9 | 1999 - 2002 | FP9A | 74 | 1840 |
| 2.0 | 1998 - 2002 | FS | 93 | 1991 |
| 2.0 (GFER) | 1997 - 2002 | FS | 85 | 1991 |
| 2.0 (GFER) | 1998 - 2002 | FS2C | 100 | 1991 |
| 2.0 DI TD (GFFP) | 1998 - 2002 | RF3F | 66 | 1998 |
| 2.0 TD (GFFP) | 2000 - 2002 | RF4F | 81 | 1998 |
| 2.0 Turbo DI (GFFP) | 1998 - 2002 | RF2A, RF4F | 74 | 1998 |
MAZDA XEDOS 6 (CA) |
||||
| 1.6 16V | 1994 - 1999 | B6EW | 79 | 1597 |
| 1.6 16V | 1992 - 1994 | B69N | 83 | 1597 |
| 1.8 (CAPP) | 1994 - 1999 | FP29, FP30 | 85 | 1839 |
| 2.0 V6 (CAEP) | 1992 - 1994 | KF1 | 106 | 1995 |
| 2.0 V6 (CAEP) | 1994 - 1999 | KF1 | 103 | 1995 |
MAZDA MX-6 (GE) |
||||
| 1.8 | 1995 - 1997 | FP9A | 74 | 1840 |
| 2.0 | 1992 - 1997 | FS | 85 | 1991 |
| 2.5 24V | 1993 - 1995 | KL | 123 | 2497 |
| 2.5 24V (GE10L) | 1992 - 1997 | KL | 121 | 2497 |
| 2.5 i 24V (GE20L) | 1994 - 1997 | KL | 120 | 2497 |
MAZDA PREMACY Van (CP_) |
||||
| 1.8 (CP19) | 1999 - 2005 | FP87, FPE1 | 74 | 1840 |
| 1.8 (CP19) | 1999 - 2005 | FPD9 | 84 | 1840 |
| DiTD (CP19) | 2000 - 2005 | RF4F | 74 | 1998 |
MAZDA 626 IV Hatchback (GE) |
||||
| 1.8 (GE8P) | 1991 - 1997 | FP | 77 | 1840 |
| 1.8 (GE8P) | 1994 - 1997 | FP01LP | 66 | 1840 |
| 1.8 (GE8P) | 1993 - 1996 | FP01 | 74 | 1840 |
| 2.0 D GLX Comprex (GEFP) | 1993 - 1997 | RF55 | 55 | 1998 |
| 2.0 i (GE10S1) | 1991 - 1997 | FS | 85 | 1991 |
| 2.0 i 4WD (GE10S1) | 1992 - 1997 | FS | 85 | 1991 |
| 2.5 24V (GE5P) | 1992 - 1997 | KL | 121 | 2497 |
| 2.5 24V (GE5P) | 1994 - 1997 | KL | 120 | 2497 |
MAZDA 626 V Hatchback (GF) |
||||
| 1.8 (GF8P) | 1997 - 1999 | FPY3 | 66 | 1840 |
| 1.9 | 1997 - 1999 | FPY3 | 66 | 1840 |
| 1.9 (GF8P) | 1999 - 2002 | FP | 74 | 1840 |
| 2.0 | 1998 - 2002 | FS | 93 | 1991 |
| 2.0 (GFER) | 1997 - 2002 | FS | 85 | 1991 |
| 2.0 DITD (GFFP) | 1998 - 2002 | RF3F | 66 | 1998 |
| 2.0 H.P. (GFER) | 1998 - 2002 | FS2C | 100 | 1991 |
| 2.0 TD (GFFP) | 2000 - 2002 | RF4F | 81 | 1998 |
| 2.0 Turbo DI (GFFP) | 1998 - 2002 | RF2A, RF4F | 74 | 1998 |
MAZDA 626 V Station Wagon (GW) |
||||
| 1.8 (GW8W) | 1998 - 2000 | FP33 | 66 | 1840 |
| 1.8 (GW8W) | 2000 - 2002 | FP9A | 74 | 1840 |
| 1.9 | 1998 - 2000 | FPY3 | 66 | 1840 |
| 2.0 (GWEW) | 1998 - 2002 | FS | 85 | 1991 |
| 2.0 DITD (GWFW) | 1999 - 2002 | RF3F | 66 | 1998 |
| 2.0 H.P. (GWEW) | 1998 - 2002 | FS2C | 100 | 1991 |
| 2.0 TD (GWFW) | 2000 - 2002 | RF4F | 81 | 1998 |
| 2.0 Turbo DI (GWFW) | 1998 - 2002 | RF4F | 74 | 1998 |
MAZDA 626 IV (GE) |
||||
| 1.8 i | 1994 - 1997 | FP | 78 | 1840 |
| 1.8 i (GE8P) | 1991 - 1997 | FP | 77 | 1840 |
| 1.8 i (GE8P) | 1994 - 1997 | FP01LP | 66 | 1840 |
| 2.0 D | 1994 - 1997 | RF55 | 56 | 1998 |
| 2.0 D GLX Comprex (GEFP) | 1992 - 1997 | RF55 | 55 | 1998 |
| 2.0 i (GE10S1) | 1992 - 1997 | FS | 85 | 1991 |
| 2.0 i 4WD (GE10S1) | 1992 - 1997 | FS | 85 | 1991 |
MAZDA PREMACY (CP) |
||||
| 1.9 (CP10P) | 1999 - 2005 | FP | 84 | 1840 |
| 1.9 (CP8W) | 1999 - 2005 | FP | 74 | 1840 |
| 2.0 (CP10S) | 2001 - 2005 | FS7E, FS7G | 96 | 1991 |
| 2.0 TD | 1999 - 2000 | RF3F | 66 | 1998 |
| 2.0 TD | 2000 - 2005 | RF4F | 74 | 1998 |
MAZDA 626 III Hatchback (GD) |
||||
| 2.2 12V (GD102) | 1988 - 1992 | F2 | 85 | 2184 |
| 2.2 12V 4WD | 1987 - 1990 | F2 | 85 | 2184 |
MAZDA B-SERIE (UN) |
||||
| 2.6 12V 4WD | 1999 - 2006 | JK26 | 90 | 2606 |
