| Typ brzdového kotúča | s vnútorným chladením |
| Vonkajżí priemer [mm] | 300 |
| Hrúbka brzd. kotúča (mm) | 26 |
| Minimálna hrúbka (mm) | 23 |
| Počet dier | 5 |
| Rozstupová krużnica Ø [mm] | 108 |
| Výżka [mm] | 47 |
| Centrovací priemer [mm] | 61 |
| Kontrolná značka | 90R-02C0289/1144 |
| Značka | Číslo |
|---|---|
| A.B.S. | 17154 |
| ACDelco | AC2607D |
| ASHIKA | 60-00-0712 |
| ATE | 24.0326-0123.1 |
| ATE | 426123 |
| ATE | 24.0126-0123.1 |
| BENDIX | 562183B |
| BENDIX | 562381B |
| BLUE PRINT | ADR164319 |
| BORG & BECK | BBD4271 |
| BOSCH | 0 986 479 B47 |
| Brake ENGINEERING | DI956172 |
| BREMBO | 09.9074.11 |
| BREMBO | 09.9074.10 |
| CAR | 142.364 |
| COMLINE | ADC1537V |
| DELPHI | BG3688 |
| FEBI BILSTEIN | 23333 |
| FERODO | DDF1205C |
| FERODO | DDF1205 |
| fri.tech. | BD0815 |
| GIRLING | 6042295 |
| HELLA | 8DD 355 109-301 |
| HELLA | 8DD 355 127-871 |
| HELLA PAGID | 8DD 355 109-301 |
| HELLA PAGID | 8DD 355 127-871 |
| ICER | 78BD2235-2 |
| JURID | 562381JC-1 |
| JURID | 562183J |
| JURID | 562381JC |
| KAWE | 6612 10 |
| LPR | R1002VR |
| LPR | R1002V |
| METELLI | 23-0675C |
| METELLI | 23-0675 |
| METZGER | 6110478 |
| METZGER | 23-0675 |
| MEYLE | 16-15 521 0015 |
| MINTEX | MDC1535 |
| NK | 203932 |
| NK | 313932 |
| NUOVA TECNODELTA | HPD 364 |
| PAGID | 54190 |
| PEX | 140.717 |
| QH Benelux | 58017 |
| QUINTON HAZELL | BDC5169 |
| RENAULT | 82 00 007 122 |
| RENAULT | 77 01 206 614 |
| RENAULT | 84 86 683 |
| ROULUNDS BRAKING | D2607 |
| sbs | 1815313932 |
| sbs | 1815203932 |
| SEBRO | 205370 |
| TEXTAR | 92119000 |
| TEXTAR | 98200 1190 0 1 |
| TEXTAR | 98200 1190 |

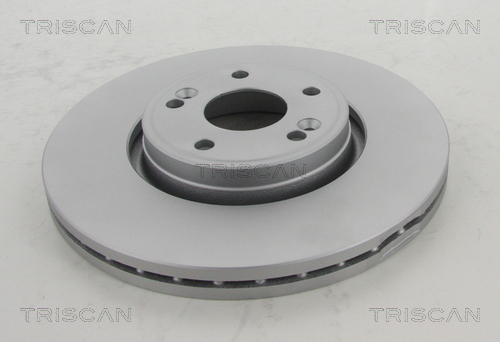

| TRISCAN | 8120 25139C |
| TRISCAN | 8120 25139 |
| TRUSTING | DF815 |
| TRW | DF4229S |
| TRW | DF4229 |
| VALEO | 197221 |
| WINHERE BRAKE | YH20057 |
| ZIMMERMANN | 470.2414.00 |
| ZIMMERMANN | 470.2414.20 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
RENAULT |
||||
RENAULT LAGUNA II Grandtour (KG0/1_) |
||||
| 1.6 16V | 2005 - 2007 | K4M 716 | 82 | 1598 |
| 1.6 16V (KG0A, KG0L) | 2001 - 2007 | K4M 710, K4M 714 | 79 | 1598 |
| 1.8 16V | 2001 - 2005 | F4P 770, F4P 774 | 89 | 1783 |
| 1.8 16V | 2001 - 2005 | F4P 770 | 86 | 1783 |
| 1.8 16V (KG0B, KG0M) | 2001 - 2005 | F4P 770, F4P 773 | 88 | 1783 |
| 1.8 16V (KG0J) | 2001 - 2005 | F4P 770, F4P 771, F4P 774, F4P 775 | 85 | 1783 |
| 1.9 dCi | 2001 - 2007 | F9Q 754 | 79 | 1870 |
| 1.9 dCi | 2005 - 2007 | F9Q 750 | 92 | 1870 |
| 1.9 dCi (KG05) | 2004 - 2005 | F9Q 664 | 68 | 1870 |
| 1.9 dCI (KG0E) | 2001 - 2005 | F9Q 752 | 77 | 1870 |
| 1.9 dCi (KG0E, KG0R) | 2001 - 2005 | F9Q 752 | 74 | 1870 |
| 1.9 dCi (KG0G) | 2001 - 2007 | F9Q 670, F9Q 674, F9Q 750 | 88 | 1870 |
| 1.9 dCi (KG12) | 2005 - 2007 | F9Q 758, F9Q 759 | 85 | 1870 |
| 1.9 dCi (KG1A, KG1W, KG0G) | 2005 - 2007 | F9Q 674, F9Q 758 | 81 | 1870 |
| 1.9 dCi (KG1V) | 2005 - 2007 | F9Q 758, F9Q 759 | 96 | 1870 |
| 2.0 16V (KG00, KG0K, KG0W, KG0P) | 2002 - 2007 | F4R 712, F4R 713, F4R 714, F4R 715 | 99 | 1998 |
| 2.0 16V (KG00, KG0K, KG0W, KG0P) | 2004 - 2007 | F4R 712, F4R 713, F4R 714, F4R 715 | 98 | 1998 |
| 2.0 16V (KG03, KG0Z, KG0T, KG1Y) | 2005 - 2007 | F4R 784, F4R 786, F4R 787 | 125 | 1998 |
| 2.0 16V (KG1Y) | 2005 - 2007 | F4R 886, F4R 887 | 150 | 1998 |
| 2.0 16V IDE (KG0N) | 2001 - 2007 | F5R 700, F5R 701 | 103 | 1998 |
| 2.0 16V Turbo (KG0S, KG1L, KG03) | 2003 - 2005 | F4R 764, F4R 765 | 120 | 1998 |
| 2.0 dCi (KG1S) | 2006 - 2007 | M9R 760 | 127 | 1995 |
| 2.0 dCi (KG1T) | 2005 - 2006 | M9R 740 | 110 | 1995 |
| 2.2 dCi (KG0F) | 2001 - 2006 | G9T 700, G9T 702, G9T 703, G9T 706, G9T 707 | 110 | 2188 |
| 2.2 dCi (KG0F, KG1N) | 2005 - 2007 | G9T 600, G9T 605, G9T 706, G9T 707 | 102 | 2188 |
RENAULT LAGUNA II (BG0/1_) |
||||
| 1.6 16V (BG0A, BG0L) | 2001 - 2005 | K4M 710, K4M 714 | 79 | 1598 |
| 1.6 16V (BG1G, BG1H) | 2005 - 2007 | K4M 716 | 82 | 1598 |
| 1.8 16V (BG04, BG0B, BG0C, BG0V) | 2001 - 2005 | F4P 770, F4P 774 | 86 | 1783 |
| 1.8 16V (BG06, BG0J, BG0M) | 2001 - 2007 | F4P 770, F4P 771, F4P 773, F4P 774, F4P 775 | 85 | 1783 |
| 1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) | 2001 - 2005 | F4P 770, F4P 772 | 89 | 1783 |
| 1.8 16V (BG0B, BG0M) | 2001 - 2007 | F4P 770, F4P 773 | 88 | 1783 |
| 1.9 dCi | 2001 - 2007 | F9Q 718, F9Q 754 | 79 | 1870 |
| 1.9 dCi | 2005 - 2007 | F9Q 750 | 92 | 1870 |
| 1.9 dCi (BG05) | 2004 - 2005 | F9Q 664 | 68 | 1870 |
| 1.9 dCi (BG08, BG0G) | 2001 - 2007 | F9Q 650, F9Q 670, F9Q 674, F9Q 750 | 88 | 1870 |
| 1.9 dCI (BG0E) | 2001 - 2005 | F9Q 752 | 77 | 1870 |
| 1.9 dCi (BG0R, BG0E) | 2001 - 2005 | F9Q 754 | 74 | 1870 |
| 1.9 dCi (BG12) | 2005 - 2007 | F9Q 750, F9Q 758, F9Q 759 | 85 | 1870 |
| 1.9 dCi (BG1A, BG1V) | 2005 - 2007 | F9Q 758, F9Q 759 | 96 | 1870 |
| 1.9 dCi (BG1A, BG1W, BG0G) | 2005 - 2007 | F9Q 670, F9Q 674, F9Q 758 | 81 | 1870 |
| 2.0 16V (BG00, BG0K, BG0P, BG0W) | 2002 - 2007 | F4R 712, F4R 713, F4R 714, F4R 715 | 99 | 1998 |
| 2.0 16V (BG00, BG0W, BG0K, BG0P) | 2002 - 2006 | F4R 712, F4R 713, F4R 714, F4R 715 | 98 | 1998 |
| 2.0 16V (BG03, BG0Z, BG0T, BG1Y) | 2005 - 2007 | F4R 784, F4R 786, F4R 787 | 125 | 1998 |
| 2.0 16V (BG1Y) | 2005 - 2007 | F4R 886, F4R 887 | 150 | 1998 |
| 2.0 16V IDE (BG0N) | 2001 - 2007 | F5R 700, F5R 701 | 103 | 1998 |
| 2.0 16V Turbo (BG0S, BG1L, BG1M) | 2003 - 2005 | F4R 764, F4R 765 | 120 | 1998 |
| 2.0 dCi (BG1T) | 2005 - 2006 | M9R 740 | 110 | 1995 |
| 2.2 dCi | 2005 - 2007 | G9T 600, G9T 605, G9T 706, G9T 707 | 102 | 2188 |
| 2.2 dCi (BG0F) | 2001 - 2006 | G9T 700, G9T 702 | 110 | 2188 |
