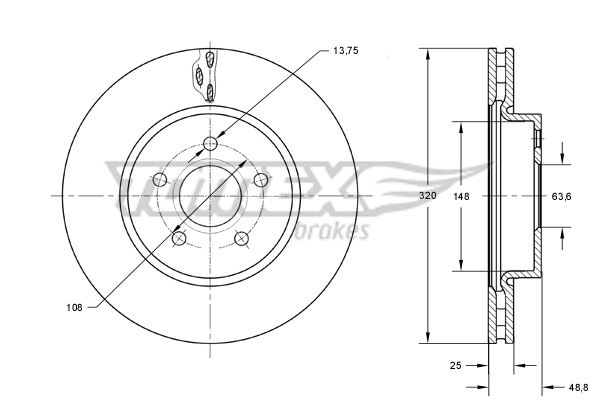

| Vonkajżí priemer [mm] | 320 |
| Hrúbka brzd. kotúča (mm) | 25 |
| Minimálna hrúbka (mm) | 23 |
| Počet dier | 5 |
| Rozstupová krużnica Ø [mm] | 108 |
| Výżka [mm] | 48,6 |
| Centrovací priemer [mm] | 63,4 |
| Povrch | potiahnutá |
| Typ brzdového kotúča | s vnútorným chladením |
| Značka | Číslo |
|---|---|
| 1110397 | |
| A.B.S. | 31400938 |
| BORG & BECK | BBD5348 |
| BOSCH | 0 986 479 660 |
| BRECO | BS 9161 |
| BRECO | BV 9161 |
| BREMBO | 09.C542.11 |
| BREMBO | 09.C542.10 |
| CAR | 142.1772 |
| CIFAM | 800-1512C |
| FERODO | DDF1649-1 |
| FORD | CV61-1125-GA |
| FORD | 1746793 |
| FORD | 9M51-2C375-AA |
| FORD | 3M51-2C375-CE |
| FORD | DV61-1125-FA |
| FORD | 1844117 |
| FORD | CV61-1125-FA |
| FORD | CV611125GA |
| FORD | 1829608 |
| FORD | 1770767 |
| GIRLING | 6066625 |
| HELLA | 8DD 355 120-361 |
| HELLA PAGID | 8DD 355 120-361 |
| JURID | 562434JC |
| KAWE | 61561 10 |
| LPR | F1039V |
| METELLI | 23-1512C |
| MEYLE | 715 521 0035 |
| MEYLE | 715 521 0035/PD |
| MINTEX | MDC2739 |
| NK | 2025105 |
| NK | 312592 |
| NK | 3125105 |
| NK | 202592 |
| QUINTON HAZELL | BDC6071 |
| REMSA | 61561.10 |
| ROADHOUSE | 61561.10 |
| sbs | 18153125105 |
| sbs | 18152025105 |
| TEXTAR | 92262203 |
| TEXTAR | 92282103 |
| TRISCAN | 8120 16167C |
| TRUSTING | DF1681 |
| TRW | DF6662S |
| VAICO | V25-80022 |
| VOLVO | 31400938 |
| VOLVO | 31341644 |
| VOLVO | 31400818 |
| VOLVO | 31381376 |
| ZIMMERMANN | 250.1372.20 |
| ZIMMERMANN | 610.3709.20 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
FORD |
||||
FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Großraumlimous |
||||
| 1.0 EcoBoost | 2013 - 2022 | B3GA, M2GA, M2GB, SFCB | 74 | 998 |
| 1.5 TDCi | 2015 - 2022 | XVGA, XVGB, XVGC, XXGA | 74 | 1499 |
| 1.5 TDCi | 2015 - 2022 | XUGA | 55 | 1499 |
| 1.5 TDCi | 2015 - 2022 | XWGA, XWGB, XWGC | 88 | 1499 |
| 1.6 EcoBoost | 2013 - 2022 | JQGA | 110 | 1596 |
| 1.6 TDCi | 2013 - 2022 | TZGA, TZGB | 70 | 1560 |
| 1.6 TDCi | 2013 - 2022 | T1GA | 85 | 1560 |
| 1.6 TDCi | 2013 - 2022 | UBGA | 55 | 1560 |
FORD TRANSIT CONNECT V408 Kasten/Großraumlimousine |
||||
| 1.0 EcoBoost | 2013 - súčasnosť | B3GA, M2GA, M2GB | 74 | 998 |
| 1.5 TDCi | 2015 - súčasnosť | XVGA, XVGB, XVGC, XXGA | 74 | 1499 |
| 1.5 TDCi | 2015 - súčasnosť | XWGA, XWGB, XWGC | 88 | 1499 |
| 1.5 TDCi | 2015 - súčasnosť | XUGA | 55 | 1499 |
| 1.6 EcoBoost | 2013 - súčasnosť | JQGA | 110 | 1596 |
| 1.6 TDCi | 2013 - súčasnosť | T1GA | 85 | 1560 |
| 1.6 TDCi | 2013 - súčasnosť | TZGA, TZGB | 70 | 1560 |
| 1.6 TDCi | 2013 - súčasnosť | UBGA | 55 | 1560 |
FORD KUGA II (DM2) |
||||
| 1.5 EcoBoost 4x4 | 2014 - 2018 | M9MA, M9MB, M9MC, M9MD | 134 | 1499 |
| 1.5 EcoBoost 4x4 | 2018 - 2019 | M9ME | 129 | 1499 |
| 1.5 EcoBoost 4x4 | 2016 - 2019 | M8MA, M8MB, M8MC, M8MD, M8ME | 110 | 1499 |
| 1.5 TDCi | 2016 - 2019 | XWMB, XWMC | 88 | 1499 |
| 1.6 EcoBoost 4x4 | 2013 - 2014 | JTMA | 134 | 1596 |
| 1.6 EcoBoost 4x4 | 2013 - 2014 | JQMA, JQMB | 110 | 1596 |
| 2.0 EcoBoost 4x4 | 2017 - 2018 | R9MA | 178 | 1999 |
| 2.0 EcoBoost 4x4 | 2019 - 2019 | R9MC | 169 | 1999 |
| 2.0 TDCi | 2013 - 2014 | UFMA | 103 | 1997 |
| 2.0 TDCi | 2013 - 2019 | UKMA | 100 | 1997 |
| 2.0 TDCi | 2014 - 2019 | XRMA, XRMB, XRMC | 88 | 1997 |
| 2.0 TDCi | 2014 - 2019 | T7MA, T7MB, T7MC, T7MD | 110 | 1997 |
| 2.0 TDCi | 2013 - 2019 | TYMA | 85 | 1997 |
| 2.0 TDCi 4x4 | 2013 - 2014 | UFMA | 103 | 1997 |
| 2.0 TDCi 4x4 | 2013 - 2014 | TXDA, TXMA | 120 | 1997 |
| 2.0 TDCi 4x4 | 2013 - 2019 | UKMA | 100 | 1997 |
| 2.0 TDCi 4x4 | 2014 - 2019 | T7MA, T7MB | 110 | 1997 |
| 2.0 TDCi 4x4 | 2014 - 2019 | T8MA, T8MB, T8MC | 132 | 1997 |
FORD KUGA II VAN |
||||
| 1.5 EcoBoost 4x4 | 2014 - 2019 | M9MA | 134 | 1499 |
| 1.5 EcoBoost 4x4 | 2019 - 2019 | M9ME | 129 | 1499 |
| 1.5 TDCi | 2019 - 2019 | XWMB, XWMC | 88 | 1499 |
| 2.0 TDCi | 2019 - 2019 | XRMA, XRMB | 88 | 1997 |
FORD TRANSIT CONNECT Großraumlimousine |
||||
| 1.5 TDCi | 2015 - súčasnosť | XVGA, XVGB, XVGC, XXGA | 74 | 1499 |
| 1.5 TDCi | 2015 - súčasnosť | XWGA, XWGB, XWGC | 88 | 1499 |
| 1.5 TDCi | 2015 - súčasnosť | XUGA | 55 | 1499 |
| 1.6 TDCi | 2013 - súčasnosť | UBGA | 55 | 1560 |
| 1.6 TDCi | 2013 - súčasnosť | TZGA, TZGB | 70 | 1560 |
| 1.6 TDCi | 2013 - súčasnosť | T1GA | 85 | 1560 |
FORD FOCUS III Turnier |
||||
| 2.0 ST | 2012 - 2020 | R9DA, R9DB, R9DC, R9DD | 184 | 1999 |
| 2.0 TDCi ST | 2014 - 2020 | T8DA | 136 | 1997 |
FORD FOCUS III |
||||
| 2.0 ST | 2012 - 2017 | R9DA, R9DB, R9DC, R9DD | 184 | 1999 |
| 2.0 TDCi ST | 2014 - 2017 | T8DA | 136 | 1997 |
FORD FOCUS II (DA_, HCP, DP) |
||||
| 2.5 ST | 2005 - 2012 | HYDA | 166 | 2522 |
VOLVO |
||||
VOLVO S40 II (544) |
||||
| 1.6 | 2005 - 2012 | B 4164 S3 | 74 | 1596 |
| 1.6 D | 2005 - 2012 | D 4164 T | 81 | 1560 |
| 1.8 | 2004 - 2010 | B 4184 S11 | 92 | 1798 |
| 1.8 FlexFuel | 2006 - 2010 | B 4184 S8 | 92 | 1798 |
| 2.0 | 2006 - 2012 | B 4204 S3 | 107 | 1999 |
| 2.0 CDI | 2005 - 2006 | D 4204 T2 | 98 | 1998 |
| 2.0 D | 2004 - 2010 | D 4204 T | 100 | 1998 |
| 2.0 F | 2009 - 2012 | B 4204 S4 | 107 | 1999 |
| 2.4 | 2004 - 2010 | B 5244 S5 | 103 | 2435 |
| 2.4 | 2004 - 2012 | B 5244 S4 | 125 | 2435 |
| 2.4 CDI | 2007 - 2010 | D 5244 T9 | 120 | 2400 |
| D2 | 2010 - 2012 | D 4162 T | 84 | 1560 |
| D3 | 2010 - 2012 | D 5204 T5 | 110 | 1984 |
| D4 | 2010 - 2012 | D 5204 T | 130 | 1984 |
| D5 | 2006 - 2010 | D 5244 T13, D 5244 T8 | 132 | 2400 |
| T5 | 2004 - 2007 | B 5254 T3 | 162 | 2521 |
| T5 | 2007 - 2012 | B 5254 T7 | 169 | 2521 |
| T5 AWD | 2004 - 2007 | B 5254 T3 | 162 | 2521 |
| T5 AWD | 2007 - 2010 | B 5254 T7 | 169 | 2521 |
VOLVO V50 (545) |
||||
| 1.6 | 2005 - 2012 | B 4164 S3 | 74 | 1596 |
| 1.6 D | 2005 - 2011 | D 4164 T | 81 | 1560 |
| 1.6 D | 2005 - 2012 | D 4164 T | 80 | 1560 |
| 1.8 | 2004 - 2010 | B 4184 S11 | 92 | 1798 |
| 1.8 BiFuel | 2009 - 2010 | B 4184 S8 | 93 | 1798 |
| 1.8 FlexFuel | 2005 - 2010 | B 4184 S8 | 92 | 1798 |
| 2.0 | 2006 - 2012 | B 4204 S3 | 107 | 1999 |
| 2.0 CDI | 2003 - 2006 | D 4204 T2 | 98 | 1998 |
| 2.0 D | 2004 - 2010 | D 4204 T | 100 | 1998 |
| 2.0 D4 | 2005 - 2006 | D 4204 T2 | 96 | 1998 |
| 2.0 FlexFuel | 2010 - 2012 | B 4204 S4 | 107 | 1999 |
| 2.4 | 2004 - 2010 | B 5244 S5 | 103 | 2435 |
| 2.4 | 2004 - 2010 | B 5244 S4 | 125 | 2435 |
| 2.4 Tdi | 2007 - 2010 | D 5244 T9 | 120 | 2400 |
| D2 | 2010 - 2012 | D 4162 T | 84 | 1560 |
| D3 | 2010 - 2012 | D 5204 T5 | 110 | 1984 |
| D4 | 2010 - 2012 | D 5204 T | 130 | 1984 |
| D5 | 2006 - 2010 | D 5244 T13, D 5244 T8 | 132 | 2400 |
| T5 | 2004 - 2007 | B 5254 T3 | 162 | 2521 |
| T5 | 2007 - 2012 | B 5254 T7 | 169 | 2521 |
| T5 AWD | 2004 - 2007 | B 5254 T3 | 162 | 2521 |
| T5 AWD | 2007 - 2010 | B 5254 T7 | 169 | 2521 |
VOLVO V40 Kasten/Schrägheck (525) |
||||
| 1.6 D2/ DRIVe | 2013 - 2015 | D 4162 T | 84 | 1560 |
| 2.0 D3 | 2013 - 2015 | D 5204 T6 | 110 | 1984 |
| 2.0 D4 | 2013 - 2014 | D 5204 T4 | 130 | 1984 |
VOLVO C70 II Cabriolet (542) |
||||
| 2.0 D | 2008 - 2009 | D 4204 T | 100 | 1998 |
| 2.4 | 2006 - 2009 | B 5244 S5 | 103 | 2435 |
| 2.4 D | 2007 - 2013 | D 5244 T9 | 120 | 2400 |
| 2.4 i | 2006 - 2009 | B 5244 S4 | 125 | 2435 |
| D3 | 2010 - 2013 | D 5204 T5 | 110 | 1984 |
| D4 | 2010 - 2013 | D 5204 T | 130 | 1984 |
| D5 | 2006 - 2013 | D 5244 T13, D 5244 T8 | 132 | 2400 |
| T5 | 2006 - 2007 | B 5254 T3 | 162 | 2521 |
| T5 | 2007 - 2013 | B 5254 T7 | 169 | 2521 |
VOLVO V40 Schrägheck (525) |
||||
| D2 | 2012 - 2016 | D 4162 T | 84 | 1560 |
| D2 | 2015 - 2019 | D 4204 T13, D 4204 T8 | 88 | 1969 |
| D3 | 2012 - 2015 | D 5204 T6 | 110 | 1984 |
| D3 | 2015 - 2019 | D 4204 T16, D 4204 T9 | 110 | 1969 |
| D4 | 2012 - 2014 | D 5204 T4 | 130 | 1984 |
| D4 | 2014 - 2019 | D 4204 T14 | 140 | 1969 |
| D4 Polestar | 2014 - 2019 | D 4204 T14 | 147 | 1969 |
| T2 | 2015 - 2019 | B 4204 T17, B 4204 T38 | 90 | 1969 |
| T2 | 2015 - 2019 | B 4154 T3, B 4154 T5 | 90 | 1498 |
| T2 GTDi | 2013 - 2016 | B 4164 T4 | 88 | 1596 |
| T3 | 2015 - 2019 | B 4204 T33, B 4204 T37 | 112 | 1969 |
| T3 | 2015 - 2019 | B 4154 T2, B 4154 T4 | 112 | 1498 |
| T3 GTDi | 2012 - 2016 | B 4164 T3 | 110 | 1596 |
| T4 | 2013 - 2015 | B 5204 T8 | 132 | 1984 |
| T4 | 2014 - 2015 | B 4164 T | 147 | 1596 |
| T4 | 2015 - 2019 | B 4204 T19 | 140 | 1969 |
| T4 GTDi | 2012 - 2016 | B 4164 T | 132 | 1596 |
| T5 | 2012 - 2014 | B 5254 T12 | 187 | 2497 |
| T5 | 2013 - 2015 | B 5204 T9 | 157 | 1984 |
| T5 | 2014 - 2019 | B 4204 T11, B 4204 T41 | 180 | 1969 |
| T5 Drive-E Polestar | 2014 - 2019 | B 4204 T11 | 186 | 1969 |
VOLVO V40 Cross Country (526) |
||||
| T4 AWD | 2013 - 2015 | B 5204 T8 | 132 | 1984 |
| T4 AWD | 2014 - 2019 | B 4204 T21 | 140 | 1969 |
| T5 AWD | 2013 - 2015 | B 5204 T9 | 157 | 1984 |
| T5 AWD | 2012 - 2016 | B 5254 T12 | 187 | 2497 |
| T5 AWD | 2014 - 2019 | B 4204 T11, B 4204 T41 | 180 | 1969 |
| T5 Polestar AWD | 2015 - 2019 | B 4204 T11 | 186 | 1969 |
