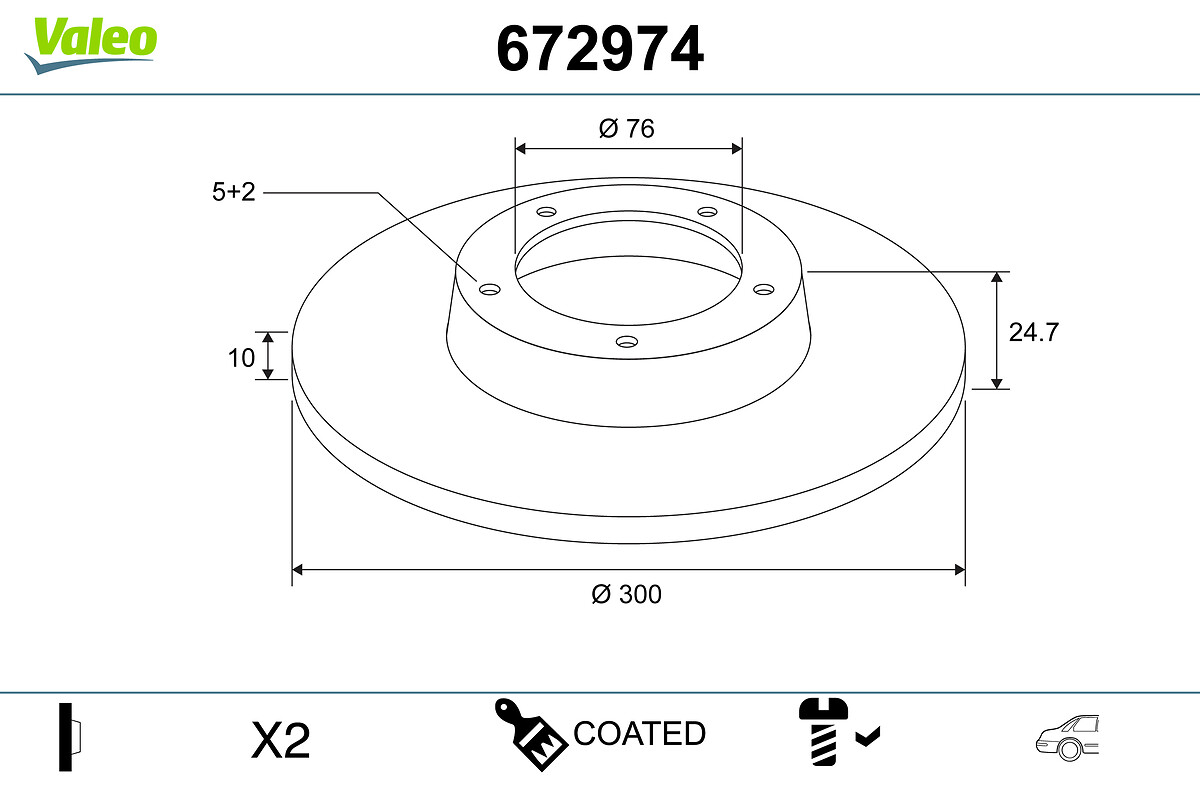

| Kontrolná značka | R90 homologated |
| Výżka [mm] | 25 |
| Hmotnosť [kg] | 8,87 |
| Vŕtanie Ø [mm] | 76 |
| Typ brzdového kotúča | plný |
| Hrúbka brzd. kotúča (mm) | 10 |
| Minimálna hrúbka (mm) | 8,4 |
| Vonkajżí priemer [mm] | 300 |
| Počet dier | 5 |
| Rozstupová krużnica Ø [mm] | 114,3 |
| Doplnkový tovar/ Dopňujúca informácia | bez prislusenstva |
| Povrch | potiahnutá |
| Typ spojenia | Krabica |
| Jednotka mnożstva | Sada |
| Počet pripevňovacích otvorov | 2 |
| Dĺżka balenia [cm] | 31,2 |
| Výżka balenia [cm] | 7 |
| Značka | Číslo |
|---|---|
| 1110786 | |
| ABE | C40515ABE |
| AKEBONO | BN-0601 |
| AKEBONO | BN-0601E |
| AP | 15071 V |
| AP | 15071 |
| APEC | DSK2923 |
| APEC | SDK6702 |
| ASHIKA | 61-0H-H10C |
| ASHIKA | 61-0H-H10 |
| ATE | 240110-03691 |
| ATE | 24.0110-0369.1 |
| BENDIX Braking | BDS1926 |
| BLUE PRINT | ADG043181 |
| BORG & BECK | BBD5231 |
| BOSCH | BD1701 |

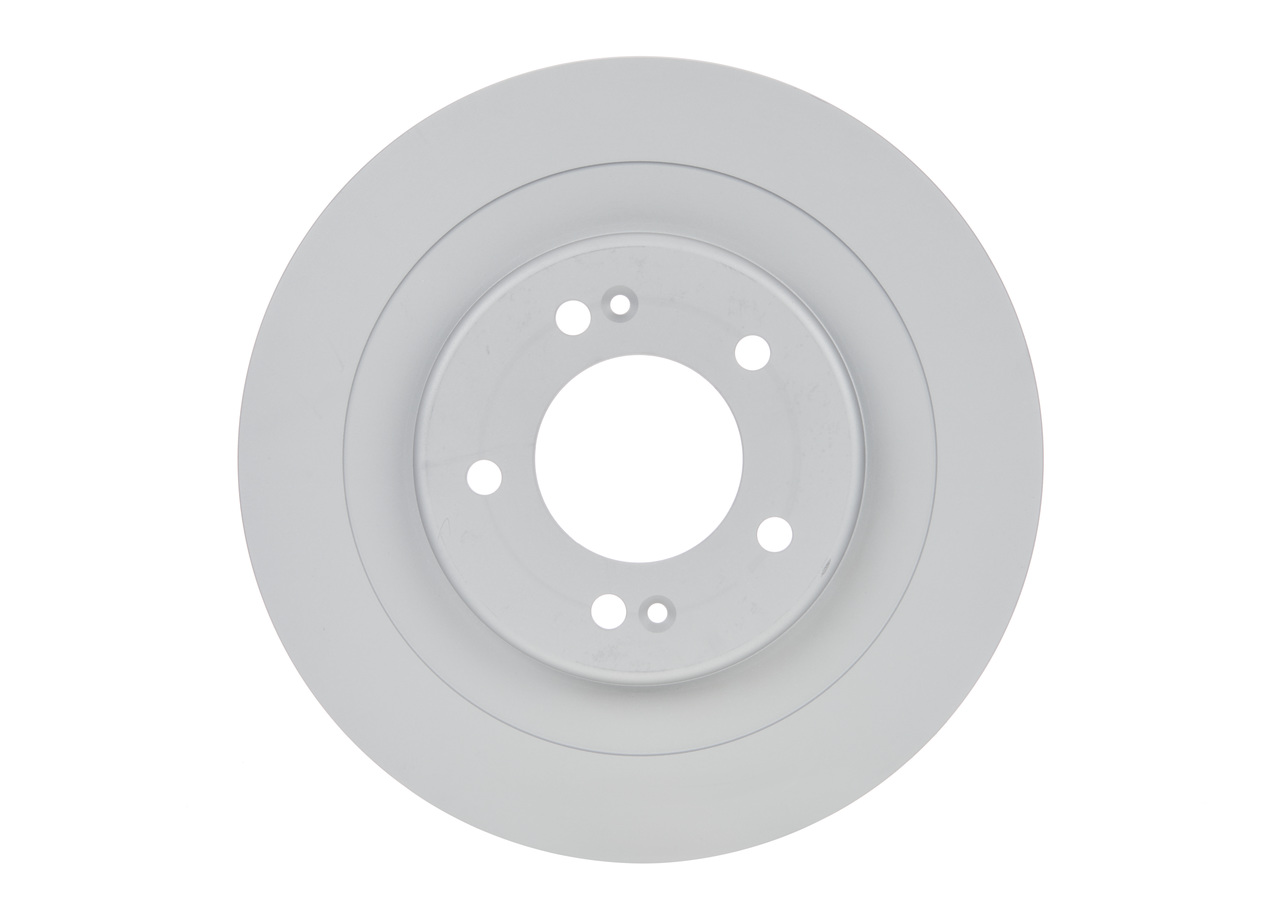

| BOSCH | 0 986 479 A14 |
| BOSCH | BD1733 |
| BOSCH | 0 986 479 A46 |
| Brake ENGINEERING | DI957086 |
| BRECO | BS 6063 |
| BRECO | BV 6063 |
| BREMBO | 08.C248.11 |
| BREMBO | 08.C248.10 |
| BREMSI | CD8201S |
| BREMSI | DBC201S |
| BSF | 11784 |

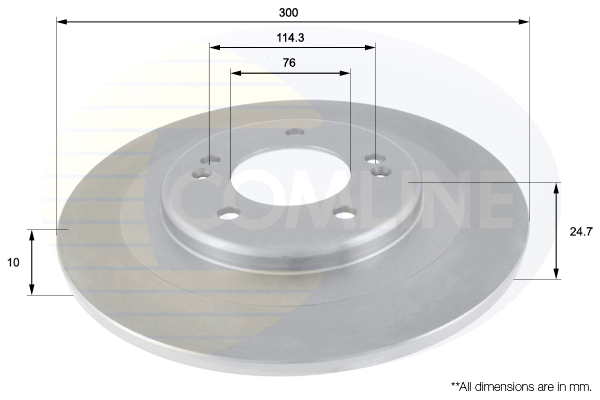

| COMLINE | ADC2411 |
| COMLINE | AND6690 |
| DELPHI | BG4688C |
| DENCKERMANN | B130682 |
| DIAMAX | N08212 |
| DJ PARTS | BD2840 |
| DON | PCD15232 |
| Dr!ve+ | DP1010.11.1557 |
| EUROBRAKE | 5815203444 |
| EUROBRAKE | 5815313444 |
| EUROREPAR | 1681172080 |
| FEBI BILSTEIN | 108563 |
| FERODO | DDF2201C |
| FIT | FR0778 |
| FREMAX | BD-0585 |
| fri.tech. | BD1507 |
| FTE | BS7533 |
| FTE | BS7533B |
| HELLA PAGID | 8DD 355 118-241 |
| HERTH+BUSS JAKOPARTS | J3310529 |
| Hi-Q | SD1107 |
| HYUNDAI | 584113Z700 |
| IJS GROUP | 80-1518 |
| INTERBRAKE | SDK6702 |
| J&S Automotive | VBD5848 |

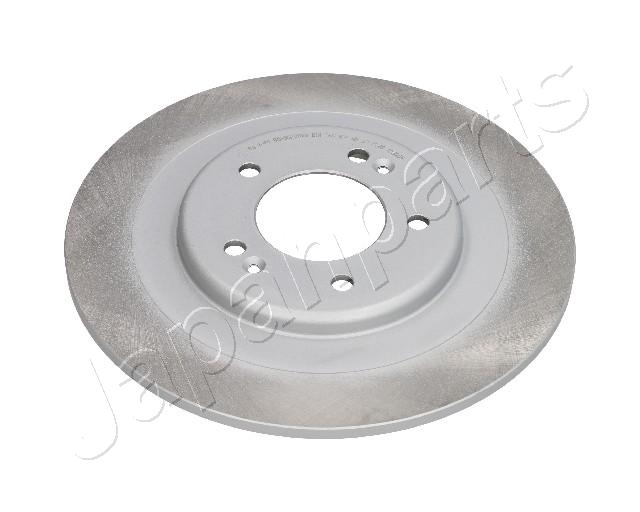

| JAPANPARTS | DP-H10C |
| JAPANPARTS | DP-H10 |
| JAPKO | 61H10C |
| JAPKO | 61H10 |
| JURATEK | HYU144 |
| JURID | 563001JC |
| KAISHIN | CBR496 |
| KAMOKA | 103174 |
| KAVO PARTS | BR-3263-C |
| KAWE | 61437 00 |
| LPR | H2027P |
| MANDO | MBC030048 |
| MDR | MRD-2H10 |
| METELLI | 23-1387C |
| METZGER | 6110694 |
| MEYLE | 37-15 523 0035/PD |
| MEYLE | 37-15 523 0035 |
| MINTEX | MDC2361 |

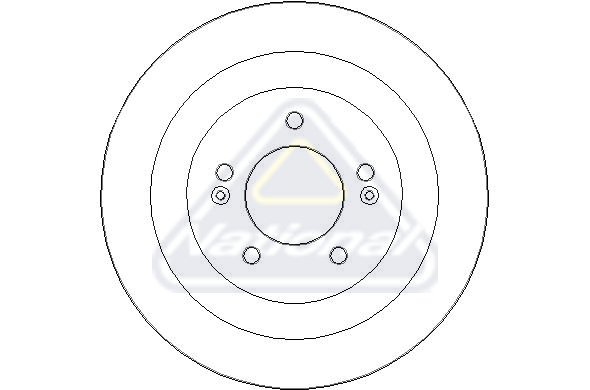

| National | NBD1789 |
| NiBK | RN1643 |

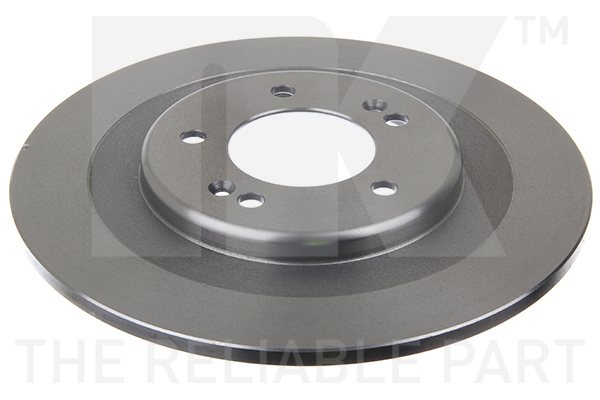

| NK | 203444 |
| NK | 313444 |
| NPS | H331I44 |
| OPEN PARTS | BDR2607.10 |
| OPTIMAL | BS-9447C |
| PARTS-MALL | PRA-087 |
| PEMEBLA | JAPDP-H10 |
| PILENGA | 5799 |
| PROTECHNIC | PRD5504 |
| QUARO | QD4465 |
| RAICAM | RD01255 |
| REMSA | DF6143700 |
| REMY | RAD1983C |
| ROTINGER | RT 1957-GL T3 |
| ROTINGER | RT 1957-GL T6 |
| ROTINGER | RT 1957-GL |
| ROTINGER | RT 1957-GL T5 |
| ROTINGER | RT 1957 |
| SIGMAUTO | DBC201S |
| TEXTAR | 92239203 |
| TRUSTING | DF1507 |
| TRW | DF8039 |
| VILLAR | 628.2384 |
| ZEKKERT | BS-6203 |
| ZIMMERMANN | 285.3526.20 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
HYUNDAI |
||||
HYUNDAI i40 I CW (VF) |
||||
| 1.6 CRDi | 2018 - 2019 | D4FE | 100 | 1598 |
| 1.6 CRDi | 2018 - 2019 | D4FE | 85 | 1598 |
| 1.6 GDI | 2011 - 2019 | G4FD | 99 | 1591 |
| 1.7 CRDi | 2011 - 2019 | D4FD | 85 | 1685 |
| 1.7 CRDi | 2011 - 2019 | D4FD | 100 | 1685 |
| 1.7 CRDi | 2015 - 2019 | D4FD | 104 | 1685 |
| 2.0 CVVT | 2012 - 2019 | G4NA | 110 | 1999 |
| 2.0 CVVT | 2012 - 2019 | G4NA | 121 | 1999 |
| 2.0 CVVT | 2011 - 2019 | G4NA | 130 | 1999 |
| 2.0 GDI | 2011 - 2019 | G4NC | 130 | 1999 |
| 2.0 GDi | 2014 - 2019 | G4NC | 121 | 1999 |
HYUNDAI i40 I (VF) |
||||
| 1.6 CRDi | 2018 - 2019 | D4FE | 85 | 1598 |
| 1.6 CRDi | 2018 - 2019 | D4FE | 100 | 1598 |
| 1.6 GDI | 2012 - 2019 | G4FD | 99 | 1591 |
| 1.7 CRDi | 2012 - 2019 | D4FD | 85 | 1685 |
| 1.7 CRDi | 2012 - 2019 | D4FD | 100 | 1685 |
| 1.7 CRDI | 2015 - 2019 | D4FD | 104 | 1685 |
| 2.0 CVVT | 2012 - 2019 | G4NA | 110 | 1999 |
| 2.0 CVVT | 2012 - 2019 | G4NA | 121 | 1999 |
| 2.0 CVVT | 2012 - 2019 | G4NA | 130 | 1999 |
| 2.0 GDI | 2012 - 2019 | G4NC | 131 | 1999 |
| 2.0 GDi | 2014 - 2019 | G4NC | 121 | 1999 |
| 2.0 GDI | 2012 - 2019 | G4NC | 130 | 1999 |
HYUNDAI i40 I Kombi Van (VF) |
||||
| 1.7 CRDI | 2015 - 2019 | D4FD | 85 | 1685 |
