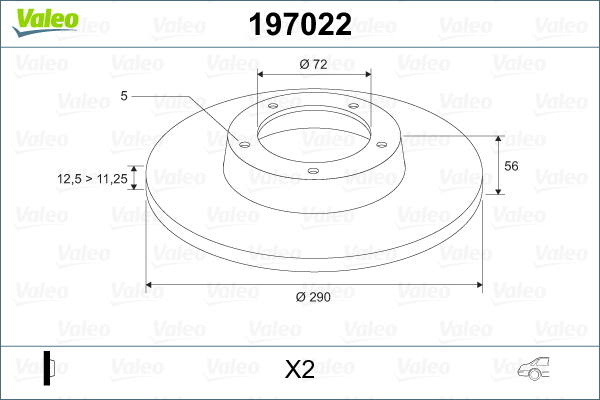

| Hrúbka brzd. kotúča (mm) | 11,3 |
| Vonkajżí priemer [mm] | 290 |
| Typ brzdového kotúča | plný |
| Výżka [mm] | 56 |
| Centrovací priemer [mm] | 72 |
| Rozstupová krużnica Ø [mm] | 114,3 |
| Typ nápravy | Rear |
| Technické informačné číslo | 78BD1023-2 |
| Kontrolná značka | E1 90R-02C0241/0031 |
| Kontrolná značka | E1 90R-02C0453/0106 |
| Kontrolná značka | E1190R02C01049/52505 |
| Hrúbka [mm] | 12,5 |
| Rozmiestnenie otvorov/Počet otvorov | 5 |
| Hmotnosť [kg] | 11160 |
| Značka | Číslo |
|---|---|
| ALFRED HEYD | 1110653 |
| ASHIKA | 61-09-993C |
| ASHUKI by Palidium | P330-125 |
| ATE | 24.0113-0196.1 |
| BENDIX Braking | BDS1884 |
| BOSCH | 0 986 479 102 |
| CHRYSLER | 4721023 |
| CHRYSLER | 4721023A G |
| CHRYSLER | 4721023 AF |
| EUROBRAKE | 5815319311 |
| FEBI BILSTEIN | 108523 |
| FREMAX | BD-1023 |
| ICER | 78BD1023-2 |
| JAPANPARTS | DP-993C |
| JAPKO | 61993C |
| LUCAS | DF4336 |
| LUCAS CAV | DF4336 |
| LUCAS DIESEL | DF4336 |
| LUCAS ELECTRICAL | DF4336 |
| LUCAS ENGINE DRIVE | DF4336 |
| LUCAS TVS | DF4336 |
| MASTER-SPORT GERMANY | 24011301961PR-PCS-MS |
| MEYLE | TX 71-46 |
| MOTRIO | 8550501879 |
| R BRAKE | 78RBD21023 |
| RED-LINE | 26CH018 |
| REMSA | 746.00 |
| REMSA | 6746.00 |
| ROADHOUSE | 6746.00 |
| SWAG | 33 10 0119 |
| TOMEX Brakes | TX 71-46 |
| TRW | DF4336 |
| TRW / KETNER | DF4336 |
| TRW Engine Component | DF4336 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
CHRYSLER |
||||
CHRYSLER VOYAGER IV (RG, RS) |
||||
| 2.4 | 2000 - 2008 | EDZ | 108 | 2429 |
| 2.4 | 2003 - 2007 | EDZ | 111 | 2429 |
| 2.5 CRD | 2000 - 2008 | ENJ | 105 | 2499 |
| 2.5 CRD | 2005 - 2008 | EDK | 88 | 2499 |
| 2.8 CRD | 2004 - 2008 | ENR | 110 | 2777 |
| 3.3 | 2000 - 2008 | EGA, EGM | 128 | 3301 |
| 3.3 | 2000 - 2002 | EGM | 131 | 3301 |
| 3.3 | 2000 - 2007 | EGA | 134 | 3301 |
| 3.3 AWD | 2000 - 2008 | EGA | 128 | 3301 |
| 3.8 | 2000 - 2008 | EGH | 160 | 3778 |
| 3.8 AWD | 2000 - 2008 | EGH | 160 | 3778 |
CHRYSLER VOYAGER / GRAND VOYAGER IV (RG) |
||||
| 2.4 | 2001 - 2006 | EDZ | 108 | 2429 |
| 2.5 CRD | 2001 - 2008 | ENJ | 105 | 2499 |
| 2.8 CRD | 2004 - 2008 | ENR | 110 | 2777 |
| 3.3 | 2000 - 2007 | EGA | 128 | 3301 |
CHRYSLER RAM VAN Van (RG) |
||||
| 2.5 CRD | 2006 - 2008 | ENJ | 105 | 2499 |
| 2.8 CRD | 2005 - 2009 | ENR | 110 | 2777 |
CHRYSLER VOYAGER III VAN (GS_) |
||||
| 2.5 TD (GSHY52, GSHZ52) | 1995 - 2001 | ENC | 85 | 2499 |
| 3.8 AWD (GSHC52) | 1995 - 1997 | EGH | 122 | 3778 |
| 3.8 AWD (GSHC52) | 1997 - 2001 | EGH | 131 | 3778 |
CHRYSLER VOYAGER IV VAN (S_) |
||||
| 3.3 (SYM53, SYH53) | 2000 - 2007 | EGM | 128 | 3301 |
| 3.8 (SYX53) | 2000 - 2007 | EGH | 160 | 3778 |
| 3.8 AWD (SCH53) | 2000 - 2007 | EGH | 160 | 3778 |
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) |
||||
| 3.8 | 1995 - 2000 | EGH | 121 | 3778 |
| 3.8 | 1997 - 2000 | EGH | 134 | 3778 |
| 3.8 | 1997 - 2000 | EGH | 131 | 3778 |
| 3.8 AWD | 1997 - 2000 | EGH | 134 | 3778 |
| 3.8 i AWD | 1995 - 2001 | L00 | 122 | 3778 |
| 3.8 i AWD | 1995 - 2001 | EGH | 131 | 3778 |
CHRYSLER GRAND VOYAGER III VAN (GS) |
||||
| 3.8 | 1999 - 1999 | EGH | 131 | 3778 |
DODGE |
||||
DODGE CARAVAN (RG_) |
||||
| 3.3 | 2000 - 2007 | EGA | 128 | 3301 |
| 3.3 | 2001 - 2007 | EGM | 132 | 3301 |
| 3.3 AWD | 2000 - 2007 | EGA | 128 | 3301 |
| 3.8 | 2000 - 2007 | EGH | 160 | 3778 |
| 3.8 | 2001 - 2007 | EGH | 154 | 3778 |
| 3.8 AWD | 2000 - 2007 | EGH | 160 | 3778 |
| 3.8 AWD | 2001 - 2007 | EGH | 153 | 3778 |
| 3.8 AWD | 2001 - 2007 | EGH | 154 | 3778 |
DODGE GRAND CARAVAN Mini Cargo Van |
||||
| 3.3 | 2006 - 2007 | EGA | 126 | 3301 |
JEEP |
||||
JEEP CHEROKEE (KJ) |
||||
| 2.4 Laredo | 2001 - 2004 | ED1 | 108 | 2429 |
| 3.7 Laredo | 2001 - 2004 | EKG | 150 | 3700 |
PLYMOUTH |
||||
PLYMOUTH VOYAGER / GRAND VOYAGER |
||||
| 3.8 i | 1995 - 2001 | EGH | 122 | 3778 |
| 3.8 i AWD | 1995 - 2001 | EGH | 122 | 3778 |
