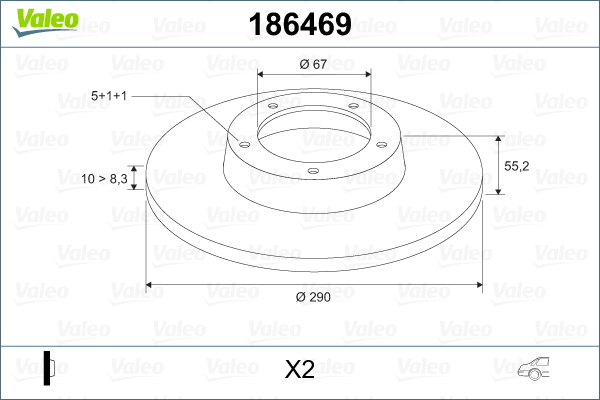

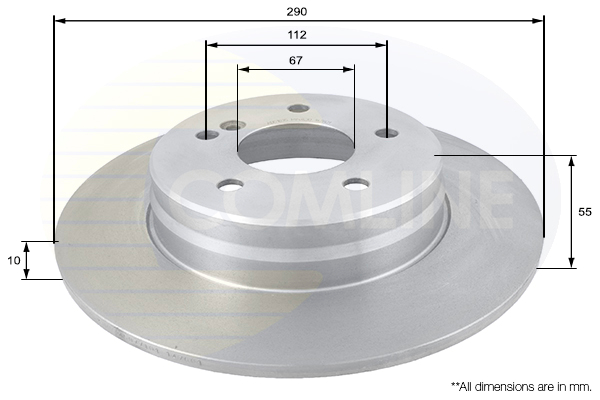

| Hrúbka brzd. kotúča (mm) | 8,3 |
| Vonkajżí priemer [mm] | 290 |
| Typ brzdového kotúča | plný |
| Výżka [mm] | 55 |
| Centrovací priemer [mm] | 67 |
| Rozstupová krużnica Ø [mm] | 112 |
| Typ nápravy | Rear |
| Technické informačné číslo | 78BD3412-2 |
| Kontrolná značka | E1 90R-02C0241/0031 |
| Kontrolná značka | E1 90R-02C0453/0106 |
| Kontrolná značka | E1190R02C01049/52505 |
| Hrúbka [mm] | 10 |
| Rozmiestnenie otvorov/Počet otvorov | 5 |
| Hmotnosť [kg] | 9500 |
| Značka | Číslo |
|---|---|
| AIC | 51327 |
| ASAM AUTOMOTIVE | 75693 |
| ASHIKA | 61-00-0507 |
| ASHUKI by Palidium | P331-061 |
| ATE | 24.0110-0217.1 |
| BOSCH | 0 986 478 626 |
| BREMBO | 08.7211.20 |
| Dr!ve+ | DP1010.11.0092 |
| EUROBRAKE | 5815313342 |
| EUROREPAR | 1684326180 |
| EUROREPAR | 1687791380 |
| FREMAX | BD-3412 |
| FREY | 745209701 |
| ICER | 78BD3412-2 |
| JAPANPARTS | DP-0507 |
| JAPKO | 610507 |
| LUCAS | DF2813 |
| LUCAS CAV | DF2813 |
| LUCAS DIESEL | DF2813 |
| LUCAS ELECTRICAL | DF2813 |
| LUCAS ENGINE DRIVE | DF2813 |
| LUCAS TVS | DF2813 |
| MAGNETI MARELLI | 361302040249 |
| MASTER-SPORT GERMANY | 24011002171PR-PCS-MS |
| MERCEDES-BENZ | 210 423 10 12 |
| MERCEDES-BENZ | 203 423 04 12 |
| MERCEDES-BENZ | 124 423 11 12 |
| MERCEDES-BENZ | 210 423 06 12 |
| MERCEDES-BENZ | 210 423 03 12 |
| MEYLE | TX 73-10 |
| MOTRIO | 8660003930 |
| OSSCA | 34006 |
| R BRAKE | 78RBD23412 |
| REMSA | 6555.00 |
| REMSA | 555.00 |
| ROADHOUSE | 6555.00 |
| TOMEX Brakes | TX 73-10 |
| TRIALLI | DF 150102 |
| TRW | DF2813 |
| TRW / KETNER | DF2813 |
| TRW Engine Component | DF2813 |
| ZIMMERMANN | 400.1437.53 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
MERCEDES-BENZ |
||||
MERCEDES-BENZ SLK (R171) |
||||
| 200 Kompressor (171.442) | 2004 - 2011 | M 271.944 | 120 | 1796 |
| 200 Kompressor (171.445) | 2008 - 2011 | M 271.954 | 135 | 1796 |
| 280 (171.454) | 2005 - 2011 | M 272.942 | 170 | 2996 |
| 350 (171.456) | 2004 - 2011 | M 272.963 | 200 | 3498 |
MERCEDES-BENZ C-CLASS (W203) |
||||
| 3.5 (203.056) | 2005 - 2007 | M 272.960 | 170 | 3498 |
| C 240 (203.061) | 2000 - 2007 | M 112.912 | 125 | 2597 |
| C 240 4-matic (203.081) | 2002 - 2007 | M 112.916 | 125 | 2597 |
| C 270 CDI (203.016) | 2000 - 2007 | OM 612.962 | 125 | 2685 |
| C 270 CDI (203.016) | 2000 - 2007 | OM 612.962 | 120 | 2685 |
| C 280 (203.054) | 2005 - 2007 | M 272.940 | 170 | 2996 |
| C 280 4-matic (203.092) | 2005 - 2007 | M 272.941 | 170 | 2996 |
| C 320 (203.064) | 2000 - 2007 | M 112.946 | 160 | 3199 |
| C 320 4-matic (203.084) | 2002 - 2007 | M 112.953 | 160 | 3199 |
| C 320 CDI (203.020) | 2005 - 2007 | OM 642.910 | 165 | 2987 |
| C 350 (203.056) | 2005 - 2007 | M 272.960 | 200 | 3498 |
| C 350 4-matic (203.087) | 2005 - 2007 | M 272.960, M 272.970 | 200 | 3498 |
MERCEDES-BENZ SL (R230) |
||||
| 350 (230.456) | 2006 - 2012 | M 272.966 | 200 | 3498 |
MERCEDES-BENZ C-CLASS T-Model (S203) |
||||
| C 180 (203.235) | 2001 - 2002 | M 111.951 | 95 | 1998 |
| C 180 Kompressor (203.246) | 2002 - 2007 | M 271.946 | 105 | 1796 |
| C 200 CDI (203.204) | 2001 - 2007 | OM 611.962 | 85 | 2148 |
| C 200 CDI (203.204) | 2001 - 2007 | OM 611.962 | 75 | 2148 |
| C 200 CDI (203.207) | 2003 - 2007 | OM 646.962, OM 646.963 | 90 | 2148 |
| C 200 CGI Kompressor (203.243) | 2003 - 2007 | M 271.942 | 125 | 1796 |
| C 200 Kompressor (203.242) | 2002 - 2007 | M 271.940 | 120 | 1796 |
| C 200 Kompressor (203.245) | 2001 - 2002 | M 111.955 | 120 | 1998 |
| C 220 CDI (203.206, 203.208) | 2001 - 2007 | OM 611.962, OM 646.963 | 105 | 2148 |
| C 220 CDI (203.208) | 2004 - 2007 | OM 646.963 | 110 | 2148 |
| C 230 (203.252) | 2005 - 2007 | M 272.920 | 150 | 2496 |
| C 230 Kompressor (203.240) | 2004 - 2007 | M 271.948 | 141 | 1796 |
| C 240 (203.261) | 2001 - 2007 | M 112.912 | 125 | 2597 |
| C 240 4-matic (203.281) | 2002 - 2007 | M 112.916 | 125 | 2597 |
| C 270 CDI (203.216) | 2001 - 2007 | OM 612.962 | 125 | 2685 |
| C 270 CDI (203.216) | 2001 - 2007 | OM 612.962 | 120 | 2685 |
| C 280 (203.254) | 2005 - 2007 | M 272.940 | 170 | 2996 |
| C 280 4-matic (203.292) | 2005 - 2007 | M 272.941 | 170 | 2996 |
| C 32 AMG Kompressor (203.265) | 2001 - 2007 | M 112.961 | 260 | 3199 |
| C 320 (203.264) | 2001 - 2007 | M 112.946 | 160 | 3199 |
| C 320 4-matic (203.284) | 2002 - 2007 | M 112.953 | 160 | 3199 |
| C 320 CDI (203.220) | 2005 - 2007 | OM 642.910 | 165 | 2987 |
| C 350 (203.256) | 2005 - 2007 | M 272.960 | 200 | 3498 |
| C 350 4-matic (203.287) | 2005 - 2007 | M 272.970 | 200 | 3498 |
MERCEDES-BENZ C-CLASS T-Model (S204) |
||||
| C 180 Kompressor (204.246) | 2007 - 2014 | M 271.952 | 115 | 1796 |
| C 200 CDI (204.207) | 2007 - 2009 | OM 646.811 | 100 | 2148 |
MERCEDES-BENZ C-CLASS Coupe (CL203) |
||||
| C 30 CDI AMG (203.718) | 2002 - 2008 | OM 612.990 | 170 | 2950 |
| C 350 (203.756) | 2005 - 2008 | M 272.960 | 200 | 3498 |
MERCEDES-BENZ C-CLASS (W202) |
||||
| C 36 AMG (202.028) | 1994 - 2000 | M 104.941 (AMG 3.6) | 206 | 3606 |
MERCEDES-BENZ CLC-CLASS (CL203) |
||||
| CLC 230 (203.752) | 2008 - 2011 | M 272.920 | 150 | 2496 |
| CLC 250 | 2009 - 2011 | M 272.920 | 150 | 2496 |
MERCEDES-BENZ CLK (C209) |
||||
| CLK 200 CGI (209.343) | 2003 - 2009 | M 271.942 | 125 | 1796 |
| CLK 200 Kompressor (209.341) | 2006 - 2009 | M 271.955 | 135 | 1796 |
| CLK 220 CDI (209.308) | 2005 - 2009 | OM 646.966 | 110 | 2148 |
| CLK 240 (209.361) | 2002 - 2009 | M 112.912 | 125 | 2597 |
| CLK 240 (209.361) | 2002 - 2009 | M 112.912 | 120 | 2597 |
| CLK 270 CDI (209.316) | 2002 - 2009 | OM 612.962, OM 612.967 | 125 | 2685 |
| CLK 270 CDI (209.316) | 2003 - 2005 | OM 612.967 | 120 | 2685 |
| CLK 280 (209.354) | 2005 - 2009 | M 272.940 | 170 | 2996 |
| CLK 320 (209.365) | 2002 - 2009 | M 112.955 | 160 | 3199 |
| CLK 320 CDI (209.320) | 2005 - 2009 | OM 642.910 | 165 | 2987 |
| CLK 350 (209.356) | 2005 - 2009 | M 272.960 | 200 | 3498 |
MERCEDES-BENZ CLK Cabriolet (A208) |
||||
| CLK 200 Kompressor (208.445) | 1998 - 2000 | M 111.944 | 141 | 1998 |
| CLK 230 Kompressor (208.447) | 1998 - 2000 | M 111.973, M 111.975 | 142 | 2295 |
| CLK 320 (208.465) | 1998 - 2002 | M 112.940 | 160 | 3199 |
| CLK 430 (208.470) | 1998 - 2002 | M 113.943 | 205 | 4266 |
MERCEDES-BENZ CLK Cabriolet (A209) |
||||
| CLK 200 Kompressor (209.441) | 2006 - 2010 | M 271.955 | 135 | 1796 |
| CLK 200 Kompressor (209.442) | 2003 - 2010 | M 271.940 | 120 | 1796 |
| CLK 240 (209.461) | 2003 - 2010 | M 112.912 | 125 | 2597 |
| CLK 280 (209.454) | 2005 - 2010 | M 272.940 | 170 | 2996 |
| CLK 320 (209.465) | 2003 - 2010 | M 112.955 | 160 | 3199 |
| CLK 320 CDI (209.420) | 2005 - 2010 | OM 642.910 | 165 | 2987 |
| CLK 350 (209.456) | 2005 - 2010 | M 272.960 | 200 | 3498 |
MERCEDES-BENZ CLK (C208) |
||||
| CLK 320 (208.365) | 1997 - 2002 | M 112.940 | 160 | 3199 |
| CLK 430 (208.370) | 1998 - 2002 | M 113.943 | 205 | 4266 |
MERCEDES-BENZ E-CLASS (W210) |
||||
| E 200 Kompressor (210.045) | 1997 - 2002 | M 111.947 | 137 | 1998 |
| E 240 (210.061) | 1997 - 2000 | M 112.911 | 125 | 2398 |
| E 240 (210.062) | 2000 - 2002 | M 112.914 | 125 | 2597 |
| E 270 CDI (210.016) | 1999 - 2002 | OM 612.961 | 120 | 2685 |
| E 270 CDI (210.016) | 1999 - 2002 | OM 612.961 | 125 | 2685 |
| E 280 (210.053) | 1996 - 1997 | M 104.945 | 142 | 2799 |
| E 280 (210.063) | 1996 - 2002 | M 112.921 | 150 | 2799 |
| E 280 4-matic (210.081) | 1996 - 2002 | M 112.921 | 150 | 2799 |
| E 300 Turbo-D (210.025) | 1996 - 1999 | OM 606.962 | 130 | 2996 |
| E 320 (210.055) | 1995 - 1997 | M 104.995 | 162 | 3199 |
| E 320 (210.065) | 1997 - 2002 | M 112.941 | 165 | 3199 |
| E 320 4-matic (210.082) | 1997 - 2002 | M 112.941 | 165 | 3199 |
| E 320 CDI (210.026) | 1999 - 2002 | OM 613.961 | 145 | 3222 |
| E 36 AMG | 1996 - 1998 | M 104.995 (AMG 3.6) | 200 | 3606 |
| E 420 (210.072) | 1996 - 1997 | M 119.985 | 205 | 4196 |
| E 430 (210.070) | 1997 - 2002 | M 113.940 | 205 | 4266 |
| E 430 4-matic (210.083) | 1999 - 2002 | M 113.940 | 205 | 4266 |
| E 50 AMG (210.072) | 1996 - 1997 | M 119.985 (AMG 5.0) | 255 | 4973 |
MERCEDES-BENZ E-CLASS T-Model (S210) |
||||
| E 290 T Turbo-D (210.217) | 1996 - 1999 | OM 602.982 | 95 | 2874 |
MERCEDES-BENZ E-CLASS T-Model (S124) |
||||
| E 36 T AMG (124.092) | 1994 - 1996 | M 104.992 (AMG 3.6) | 200 | 3606 |
