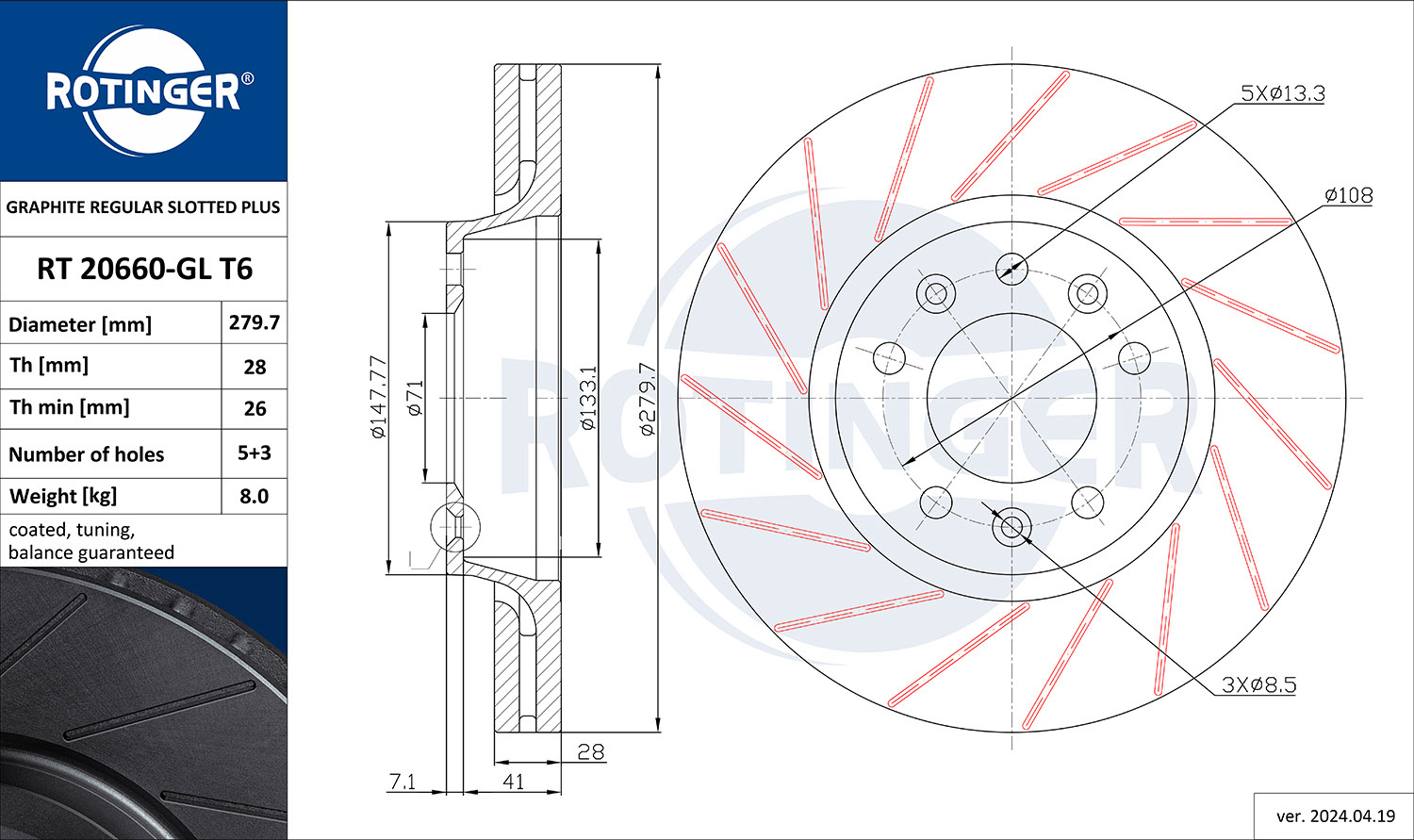

| Minimálna hrúbka (mm) | 26 |
| Doplnkový tovar/ Dopňujúca informácia 2 | so skrutkami |
| Výżka [mm] | 48 |
| Typ brzdového kotúča | s vnútorným chladením |
| Centrovací priemer [mm] | 71 |
| Vonkajżí priemer [mm] | 280 |
| Počet dier | 5 |
| Hrúbka brzd. kotúča (mm) | 28 |
| Użahovací moment [Nm] | 100 |
| Značka | Číslo |
|---|---|
| APEC | DSK2610 |
| ATE | 24012802141 |
| BOSCH | 0986479266 |
| Brake ENGINEERING | DI956683 |
| CITROËN | 4249J9 |
| CITROËN | 424921 |
| CITROËN | 1611841880 |
| CITROËN | 424987 |
| CITROËN | 1618865080 |
| DELPHI | BG4084 |
| FEBI BILSTEIN | 108651 |
| FERODO | DDF1601C |
| FERODO | DDF1601 |
| FIAT | 9467548387 |
| FIAT | 9404249878 |
| FIAT | 1401416880 |
| MINTEX | MDC1844 |
| NK | 2045175 |
| NK | 313735 |
| NK | 203735 |
| PAGID | 54569 |
| PEUGEOT | 1611841880 |
| PEUGEOT | 424987 |
| PEUGEOT | 424920 |
| PEUGEOT | 1618865080 |
| PEUGEOT | 4249J9 |
| sbs | 1815203735 |
| sbs | 17770 |
| sbs | 1815313735 |
| sbs | 1815203730 |
| sbs | 18152045175 |
| sbs | 1815201952 |
| TEXTAR | 92156903 |
| TEXTAR | 92156900 |
| TOYOTA | SU001A1063 |
| TRW | DF6020S |
| VALEO | 197188 |
| ZIMMERMANN | 440311620 |
| ZIMMERMANN | 440311600 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
CITROËN |
||||
CITROËN JUMPY II (VF7) |
||||
| 1.6 HDi 90 16V | 2007 - 2016 | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - 2016 | 9HH (DV6DUM), 9HM (DV6UC) | 66 | 1560 |
CITROËN JUMPY II Kasten |
||||
| 1.6 HDi 90 16V | 2007 - 2016 | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - 2016 | 9HH (DV6DUM), 9HM (DV6UC) | 66 | 1560 |
CITROËN JUMPY II Pritsche/Fahrgestell |
||||
| 1.6 HDi 90 16V | 2007 - 2016 | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - 2016 | 9HH (DV6DUM) | 66 | 1560 |
FIAT |
||||
FIAT SCUDO Bus (270_, 272_) |
||||
| 1.6 D Multijet | 2007 - 2016 | 9HU | 66 | 1560 |
| 1.6 D Multijet | 2011 - 2016 | 9H07 (DV6UC), 9HM (DV6UC) | 66 | 1560 |
FIAT SCUDO Kasten (270_, 272_) |
||||
| 1.6 D Multijet | 2007 - 2016 | 9HU | 66 | 1560 |
| 1.6 D Multijet | 2011 - 2016 | 9H07 (DV6UC), 9HM (DV6UC) | 66 | 1560 |
FIAT SCUDO Pritsche/Fahrgestell (270_, 272_) |
||||
| 1.6 D Multijet | 2007 - 2016 | 9HU | 66 | 1560 |
PEUGEOT |
||||
PEUGEOT EXPERT TEPEE (VF3X_) |
||||
| 1.6 HDi 90 16V | 2007 - 2016 | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - 2016 | 9HH (DV6DUM), 9HM (DV6UC) | 66 | 1560 |
PEUGEOT EXPERT Kasten (VF3A_, VF3U_, VF3X_) |
||||
| 1.6 HDi 90 16V | 2007 - súčasnosť | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - súčasnosť | 9HH (DV6DUM), 9HM (DV6UC) | 66 | 1560 |
PEUGEOT EXPERT Pritsche/Fahrgestell |
||||
| 1.6 HDi 90 16V | 2007 - súčasnosť | 9HU (DV6UTED4) | 66 | 1560 |
| 1.6 HDi 90 8V | 2007 - súčasnosť | 9HH (DV6DUM), 9HM (DV6UC) | 66 | 1560 |
TOYOTA |
||||
TOYOTA PROACE Kasten (MDX_) |
||||
| 1.6 D (MDX9) | 2013 - 2016 | 3WZ-TV (DV6UC) | 66 | 1560 |
| 2.0 D (MDX3) | 2013 - 2016 | 4WZ-FTV (DW10CD) | 94 | 1997 |
| 2.0 D (MDX6) | 2013 - 2016 | 4WZ-FHV (DW10CTED4) | 120 | 1997 |
| 2.0 D 4x4 (MDX4) | 2013 - 2016 | 4WZ-FTV (DW10CD) | 94 | 1997 |
