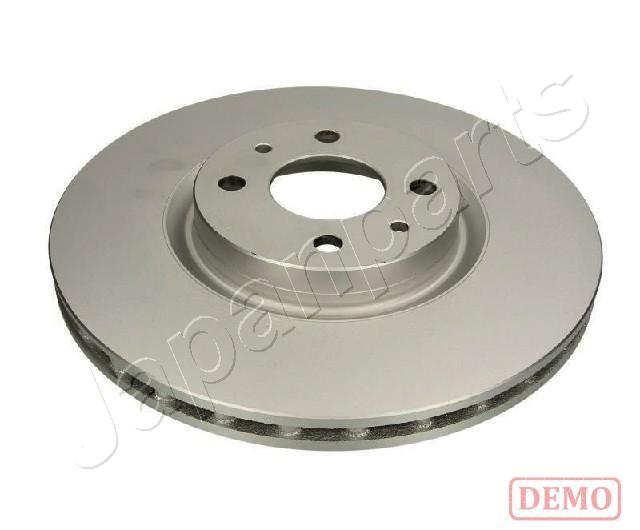

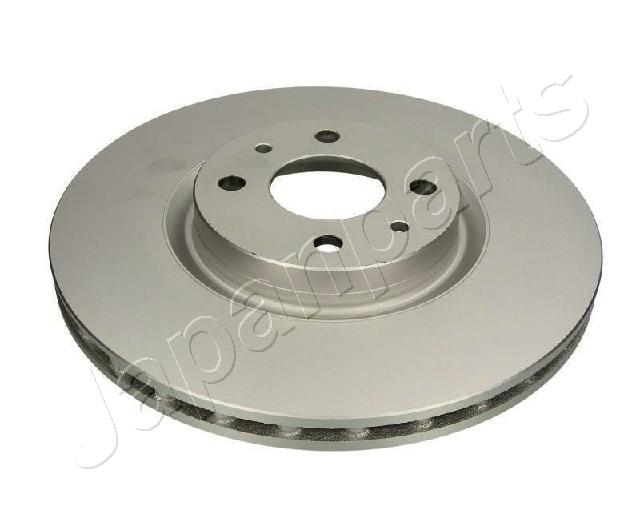

| Typ brzdového kotúča | s vnútorným chladením |
| Hrúbka brzd. kotúča (mm) | 22 |
| Počet dier | 4 |
| Doplnkový tovar/ Dopňujúca informácia 2 | so skrutkami |
| Výżka [mm] | 39 |
| Centrovací priemer [mm] | 59 |
| Vonkajżí priemer [mm] | 284 |
| Povrch | potiahnutá |
| Minimálna hrúbka (mm) | 20,2 |
| Użahovací moment [Nm] | 86 |
| Značka | Číslo |
|---|---|
| ALFA ROMEO | 71772252 |
| ALFA ROMEO | 71770942 |
| ALFA ROMEO | 6001073196 |
| AP | 24273E |
| AP | X24273 |
| ATE | 24012201071 |
| BENDIX | 561508B |
| BOSCH | 0986478786 |
| BOSCH | 0986478639 |
| Brake ENGINEERING | DI955186 |
| BRECO | bs7997 |
| BREMBO | 09505875 |
| DELPHI | BG2617 |
| FEBI BILSTEIN | 12133 |
| FEBI BILSTEIN | 22927 |
| FERODO | DDF252C |
| FERODO | DDF252 |
| FERODO | DRF252 |
| FIAT | 60812137 |
| FIAT | 46403958 |
| FIAT | 82462136 |
| FIAT | 71770942 |
| FIAT | 6001073196 |
| FIAT | 46427949 |
| FIAT | 71772252 |
| FIAT | 46427947 |
| JURID | 561508J |
| METELLI | 230407 |
| METELLI | 230298 |
| MINTEX | MDC808 |
| MINTEX | MDC1084C |
| NK | 202327 |
| NK | 312336 |
| NK | 202336 |
| NK | 312327 |
| PAGID | 50914 |
| PAGID | 51811 |
| sbs | 1815312327 |
| sbs | 1815209922 |
| sbs | 1815202327 |
| sbs | 1815209924 |
| sbs | 1815209921 |
| sbs | 1815201019 |
| sbs | 1815312336 |
| sbs | 1815209923 |
| sbs | 1815202336 |
| sbs | 16153 |
| TEXTAR | 92055200 |
| TEXTAR | 92069605 |
| TEXTAR | 92055203 |
| TRW | DF2734 |
| TRW | DF1757 |
| VALEO | 186297 |
| ZIMMERMANN | 230236320 |
| ZIMMERMANN | 230236352 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
ALFA ROMEO |
||||
ALFA ROMEO 145 (930_) |
||||
| 1.8 i.e. 16V (930.A1A) | 1998 - 2001 | AR 32201 | 106 | 1747 |
| 1.8 i.e. 16V T.S. (930.A1A) | 1996 - 1998 | AR 38401, AR 67106, AR 67199 | 103 | 1747 |
| 2.0 16V (930.A5) | 1998 - 2001 | AR 32301 | 114 | 1970 |
| 2.0 16V T.S. (930.A5) | 1995 - 2001 | AR 67204 | 110 | 1970 |
ALFA ROMEO 146 (930_) |
||||
| 1.8 i.e. 16V T.S. (930.B1A) | 1996 - 2001 | AR 38401, AR 67106 | 103 | 1747 |
| 1.8 i.e. 16V T.S. (930.B1A) | 1998 - 2001 | AR 32201 | 106 | 1747 |
| 2.0 16V (930.B5) | 1997 - 2001 | AR 32301 | 114 | 1970 |
| 2.0 16V T.S. (930.B5) | 1995 - 2001 | AR 67204 | 110 | 1970 |
FIAT |
||||
FIAT MULTIPLA (186_) |
||||
| 1.6 | 2004 - 2005 | 182 B6.000 | 68 | 1596 |
| 1.6 (186AXC1A) | 2001 - 2005 | 182 B6.000 | 74 | 1596 |
| 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 2000 - 2010 | 182 B6.000 | 76 | 1596 |
| 1.6 100 16V (186AXA1A) | 1999 - 2010 | 182 A4.000 | 76 | 1581 |
| 1.6 16V (186AGB1A) | 2002 - 2010 | 182 B6.000 | 70 | 1596 |
| 1.6 16V Bipower (186AMB1A) | 1999 - 2010 | 186 A4.000 | 76 | 1581 |
| 1.6 16V Bipower (186AXC1A) | 2001 - 2010 | 182 B6.000 | 76 | 1596 |
| 1.6 16V Blupower (186AMA1A) | 1999 - 2010 | 186 A3.000 | 70 | 1581 |
| 1.6 16V GPL | 2001 - 2010 | 182 B6.000 | 76 | 1596 |
| 1.6 Natural Power (186AGB1A05) | 2008 - 2010 | 182 B6.000 | 77 | 1596 |
| 1.9 JTD (186AXE1A) | 2002 - 2010 | 186 A9.000 | 88 | 1910 |
| 1.9 JTD 105 (186AXB1A) | 1999 - 2010 | 182 B4.000 | 77 | 1910 |
| 1.9 JTD 110 | 2001 - 2002 | 186 A6.000 | 81 | 1910 |
| 1.9 JTD 115 | 2002 - 2010 | 186 A8.000 | 85 | 1910 |
FIAT MULTIPLA VAN (186_) |
||||
| 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 2000 - 2010 | 182 B6.000 | 76 | 1596 |
| 1.9 JTD | 2000 - 2002 | 186 A6.000 | 81 | 1910 |
| 1.9 JTD | 2004 - 2010 | 186 A8.000 | 85 | 1910 |
| 1.9 JTD (186AXB1A) | 1999 - 2000 | 182 B4.000 | 77 | 1910 |
| 1.9 JTD (186AXG1A, 186BXG1A) | 2002 - 2010 | 186 A9.000 | 88 | 1910 |
| Bipower | 2001 - 2010 | 182 B6.000 | 76 | 1596 |
FIAT PUNTO (188_) |
||||
| 1.8 130 HGT (188.738, .718) | 1999 - 2012 | 183 A1.000, 188 A6.000 | 96 | 1747 |
| 1.9 JTD | 2003 - 2012 | 188 B2.000 | 74 | 1910 |
FIAT COUPE (175_) |
||||
| 1.8 16V | 1996 - 2000 | 183 A1.000 | 96 | 1747 |
| 2.0 16V | 1993 - 1996 | 836 A3.000 | 102 | 1995 |
| 2.0 20V | 1998 - 2000 | 182 B3.000 | 113 | 1998 |
| 2.0 20V (175AXC1A) | 1996 - 1998 | 182 A1.000 | 108 | 1998 |
FIAT TIPO (160_) |
||||
| 2.0 16V (160.AV) | 1991 - 1995 | 160 A8.046 | 107 | 1995 |
| 2.0 i.e. 16V Sport (160.EF) | 1993 - 1995 | 836 A3.000 | 102 | 1995 |
LANCIA |
||||
LANCIA DELTA II (836_) |
||||
| 1.8 i.e. 16V GT (836AR) | 1996 - 1999 | 183 A1.000 | 96 | 1747 |
| 2.0 16V (836AA, 836CA) | 1993 - 1999 | 836 A3.000 | 102 | 1995 |
LANCIA DEDRA (835_) |
||||
| 2.0 HF Integrale (835AP) | 1990 - 1994 | 835 A7.046 | 124 | 1995 |
| 2.0 i.e. Turbo (835AR) | 1991 - 1999 | 835 A8.046 | 119 | 1995 |
| 2.0 i.e. Turbo Integrale (835AO) | 1990 - 1991 | 835 A7.000 | 121 | 1995 |
| 2.0 Turbo (835AQ) | 1990 - 1994 | 835 A8.000 | 130 | 1995 |
LANCIA DEDRA SW (835_) |
||||
| 2.0 Integrale (835ED) | 1994 - 1999 | 836 A3.000 | 102 | 1995 |
